Front Power Window Motor Inspection

  1. Remove the front door trim panel.

    (Refer to "FRONT DOOR TRIM ")

  2. Disconnect the connector from the motor.

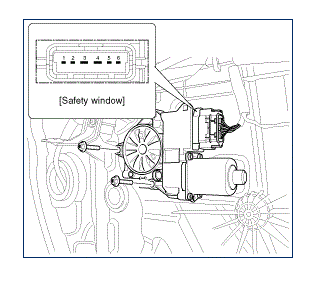

    Fig 1: Identifying Front Power Window Motor Connector
    G08814427Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the terminal No. 2 and No. 3 to battery voltage (12V) and terminal No. 4 to battery (-). And then check that the motor operates smoothly when connecting the terminals below.

    If the operation is abnormal, replace the motor.
