Passenger Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel.

    (Refer to "FRONT DOOR TRIM ")

  3. Disconnect the connector from the power window switch module.
  4. Remove the power window switch module (A) from the door trim after loosening the mounting screws.

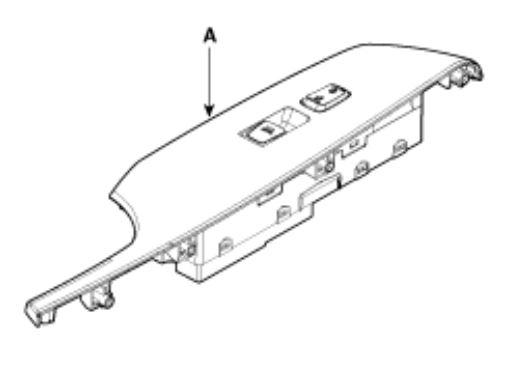

    Fig 1: Identifying Power Window Switch Module
    G08814440Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the power window switch after loosening screws.
