Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim panel.

    (Refer to "REAR DOOR TRIM ")

  3. Disconnect the connector (A) from the power window switch module.
  4. Remove the power window switch module (B) from the door trim after loosening the mounting screws.

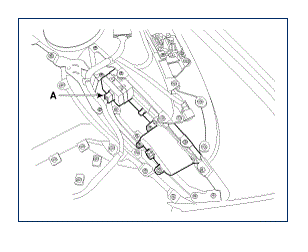

    Fig 1: Identifying Power Window Switch Module Connector
    G08814441Courtesy of HYUNDAI MOTOR AMERICA

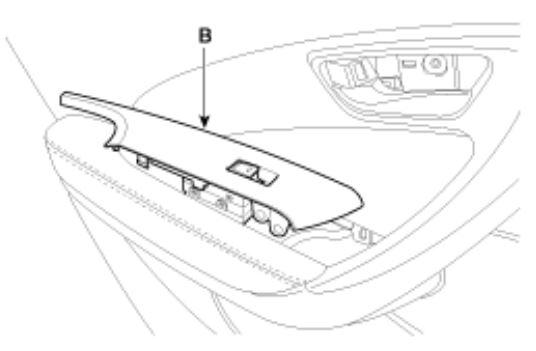

    Fig 2: Identifying Power Window Switch Module
    G08814442Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the power window switch (A) after loosening the fixing clip.

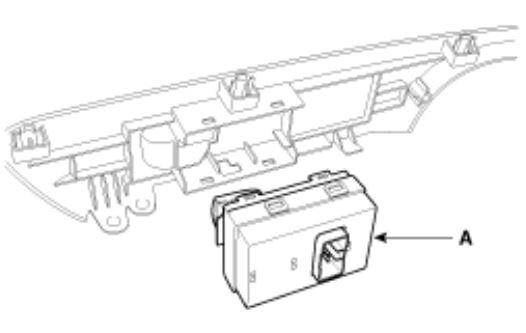

    Fig 3: Identifying Power Window Switch
    G08814443Courtesy of HYUNDAI MOTOR AMERICA
