Battery Diagnostic Flow

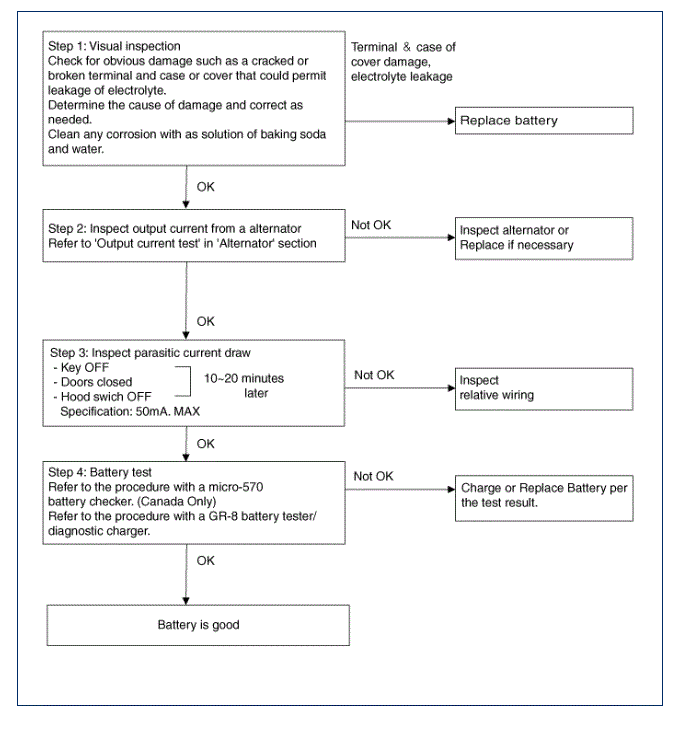

Fig 1: Battery Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
