Removal and Installation

Remove the air duct (B).
Disconnect the negative terminal (A) from the battery.
Tightening torque: 3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)

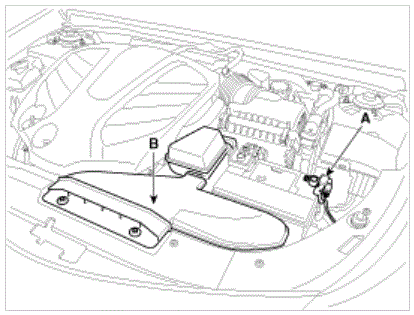

Fig 1: Identifying Air Duct And Negative Terminal Of Battery
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the positive terminal (A) from the battery.
Tightening torque: 7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft)
Remove the battery insulation pad (B).
Remove the battery mounting bracket (C) by loosening the mounting bolt and then remove the battery (D).
Tightening torque: 9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

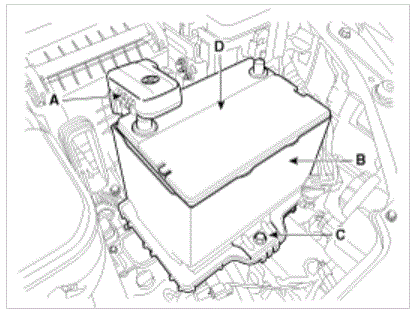

Fig 2: Identifying Battery Terminal, Insulation Pad, Mounting Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Disconnect the front connector (A) and then remove the battery tray (B).
Tightening torque: 9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

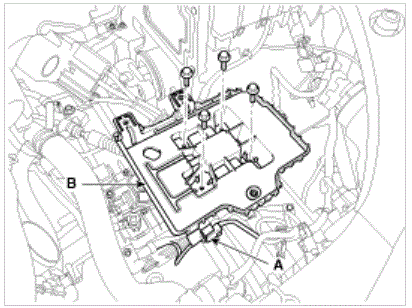

Fig 3: Identifying Front Connector And Battery Tray
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse order of removal.
CAUTION: When installing the battery, fix the mounting bracket on the tray correctly.
