Components and Components Location: Component

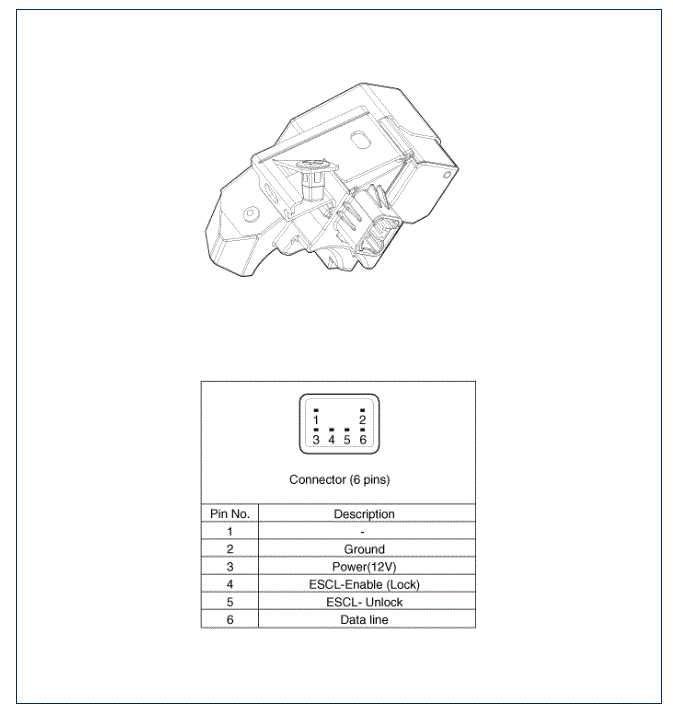

Fig 1: Identifying ESCL (Electronic Steering Column Lock) Connector
G08814678Courtesy of HYUNDAI MOTOR AMERICA
