Repair Procedures: Installation

Install the electronic steering column lock (A).
CAUTION: Do not reuse the shear bolts.
When installing the new shear bolts to the electronic steering column lock, tighten the shear bolts until its head is cut off.

Tightening torque:

7 ~ 13 N.m (0.7 ~ 1.3 kgf.m, 5 ~ 9.4 lb.ft)

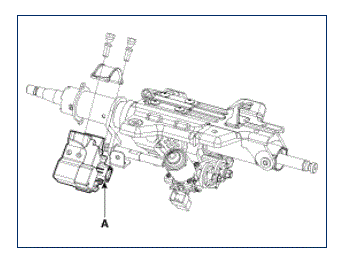

Fig 1: Identifying Electronic Steering Column Lock
Courtesy of HYUNDAI MOTOR AMERICA
Install the steering column.
Install the crash pad lower panel.
