Circuit Diagram

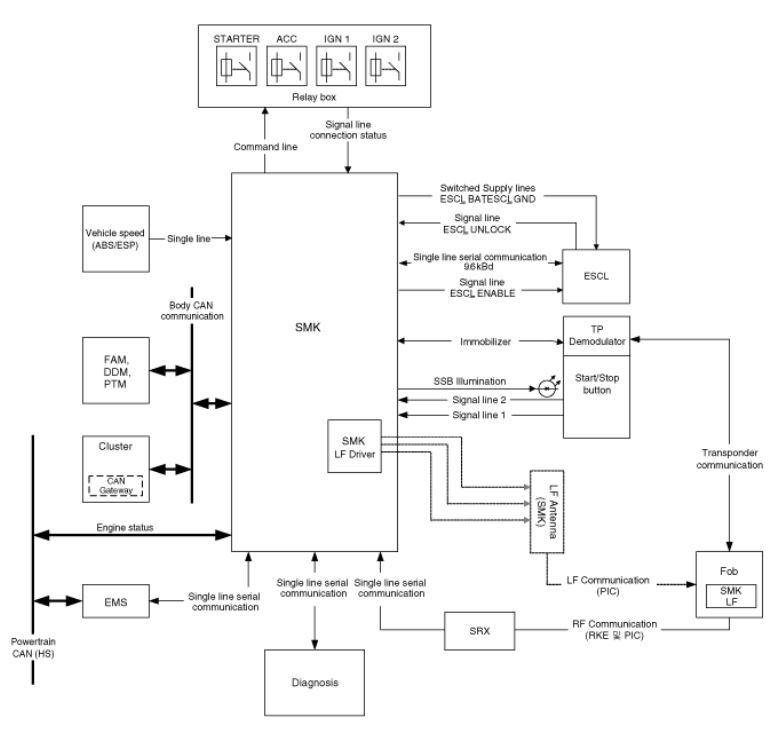

Fig 1: Button Engine Start System Circuit Diagram
G08814668Courtesy of HYUNDAI MOTOR AMERICA
