Components And Components Location: Components

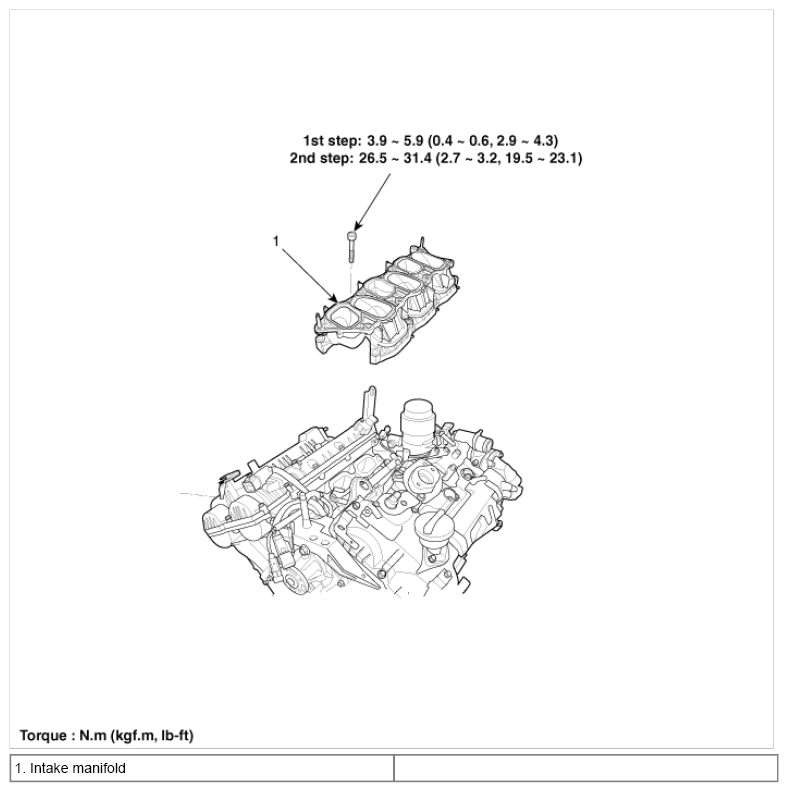

Fig 1: Intake Manifold With Torque Specifications
G08809406Courtesy of HYUNDAI MOTOR AMERICA
