Components and Components Location: Components

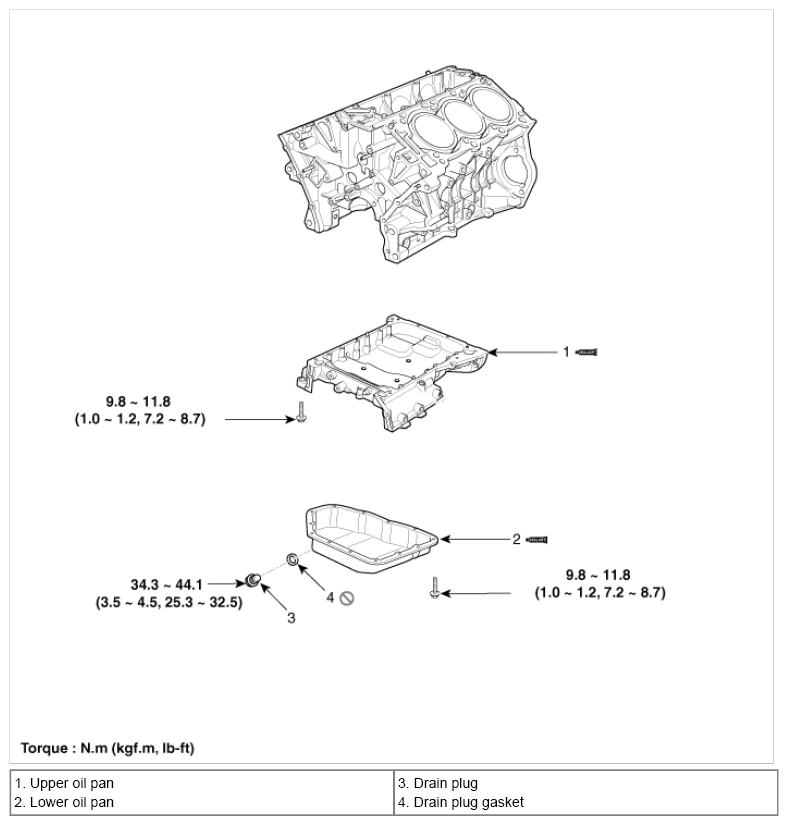

Fig 1: Upper Oil Pan, Lower Oil Pan, Drain Plug And Gasket With Torque Specifications
G08809379Courtesy of HYUNDAI MOTOR AMERICA
