Components and Components Location: Components

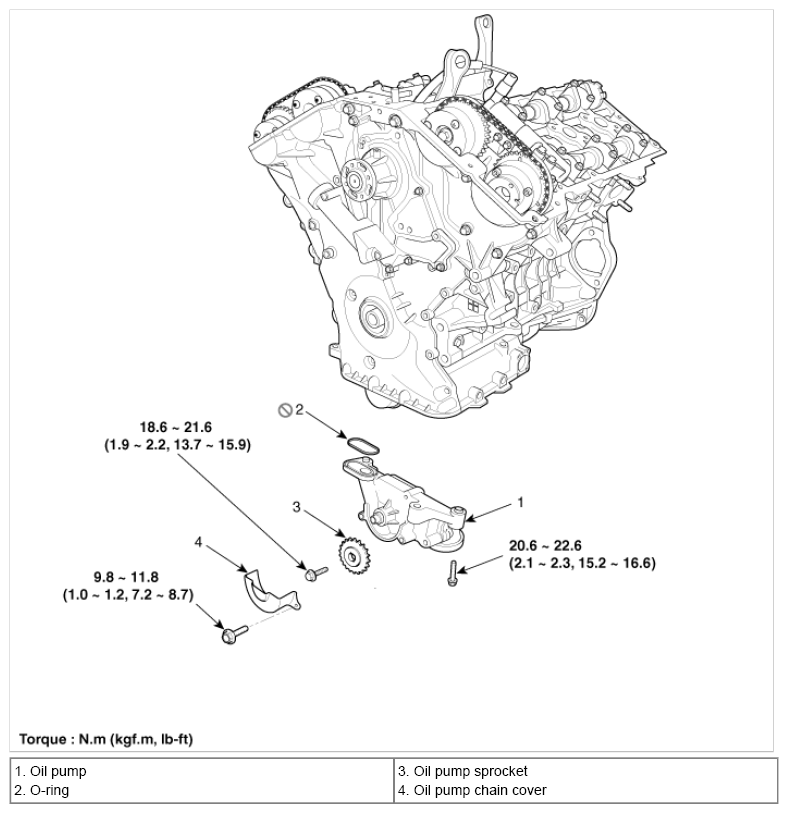

Fig 1: Oil Pump, Sprocket, Chain Cover And O-Ring With Torque Specifications
G08809386Courtesy of HYUNDAI MOTOR AMERICA
