[CVVT Oil Control Valve (Exhaust)]

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Disconnect the CVVT oil control valve connector (A).
[Bank 1]

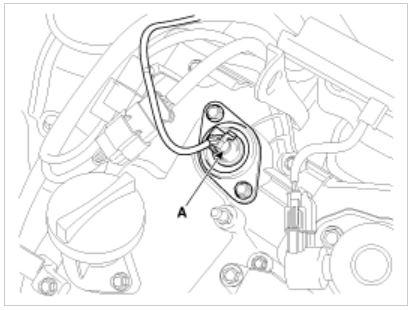

Fig 1: Identifying CVVT Oil Control Valve Connector
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2]

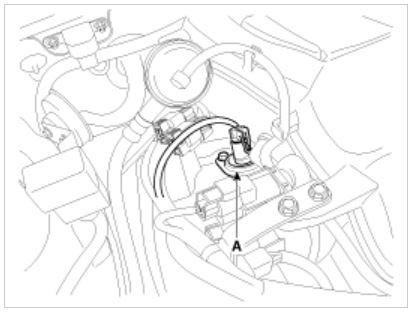

Fig 2: Identifying CVVT Oil Control Valve Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cylinder head cover.
(Refer to "CYLINDER HEAD COVER ")
Remove the installation bolt (A), and then remove the valve from the engine.
[Bank 1]

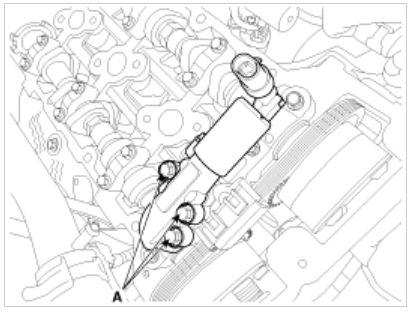

Fig 3: Identifying CVVT Oil Control Valve Installation Bolts
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2]

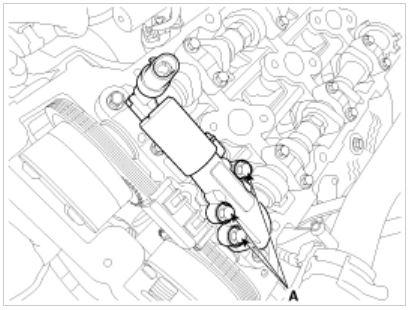

Fig 4: Identifying CVVT Oil Control Valve Installation Bolts
Courtesy of HYUNDAI MOTOR AMERICA
