Circuit Diagram

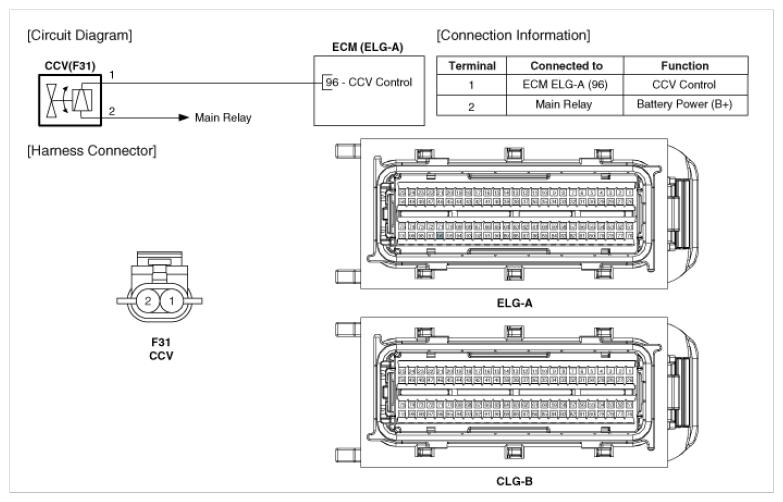

Fig 1: Canister Close Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
