Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).

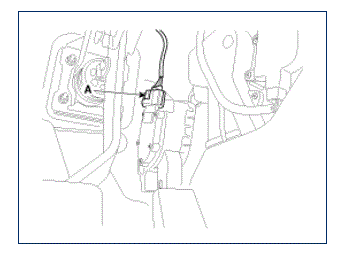

    Fig 1: Identifying Accelerator Position Sensor Connector
    G08809813Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the installation nuts (B) and bolt (C), and then remove the accelerator pedal module.

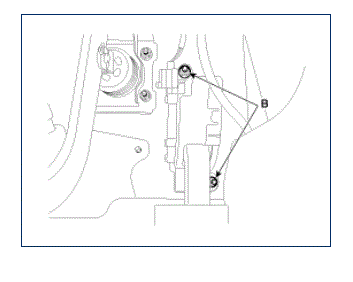

    Fig 2: Identifying Accelerator Pedal Module Installation Nuts
    G08809814Courtesy of HYUNDAI MOTOR AMERICA

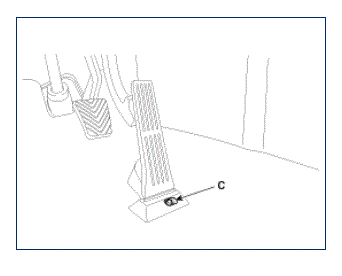

    Fig 3: Identifying Accelerator Pedal Module Installation Bolts
    G08809815Courtesy of HYUNDAI MOTOR AMERICA
