Repair Procedures: Removal

  1. Lift the vehicle.
  2. Disconnect the fuel filler hose (A).
  3. Disconnect the ventilation hose (B) from the fuel tank air filter.

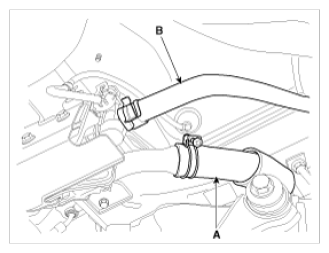

    Fig 1: Identifying Fuel Filler And Ventilation Hose
    G08809809Courtesy of HYUNDAI MOTOR AMERICA
  4. Open the fuel filler door and then remove the filler-neck installation screw (A).

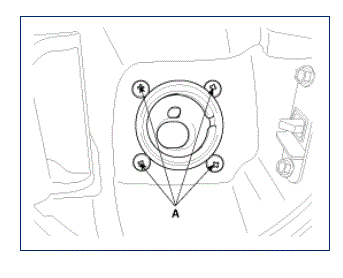

    Fig 2: Identifying Filler-Neck Installation Screws
    G08809810Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the rear-LH wheel, tire, and the inner wheel house (A).

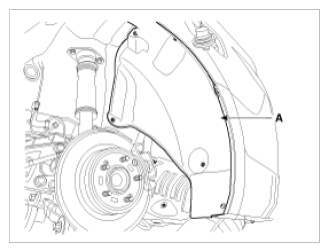

    Fig 3: Identifying Inner Wheel House
    G08809811Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the filler-neck assembly from the vehicle after removing the bracket installation bolt (A).

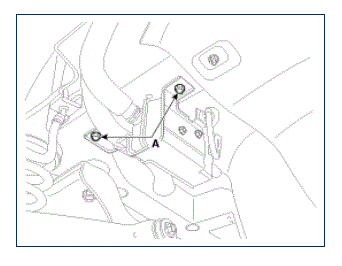

    Fig 4: Identifying Bracket Installation Bolt
    G08809812Courtesy of HYUNDAI MOTOR AMERICA
