Repair Procedures: Removal

Remove the fuel pump.
(Refer to "FUEL PUMP ")

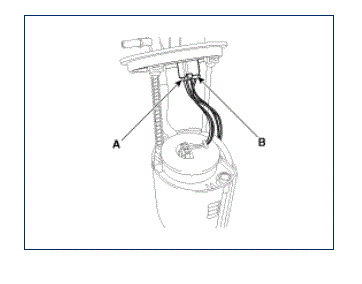

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Fig 1: Identifying Electric Pump Wiring And Fuel Sender Connector
Courtesy of HYUNDAI MOTOR AMERICA

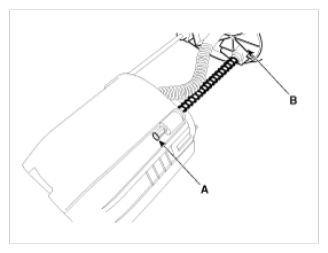

Remove the cushion pipe fixing clip (A), and then separate the head assembly (B) from reservoir cup.

Fig 2: Identifying Head Assembly And Cushion Pipe Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA

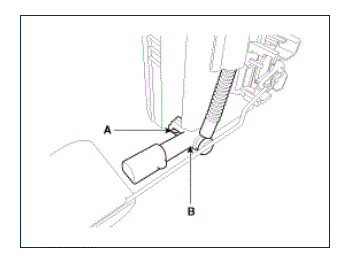

Remove the return nozzle (B) after releasing the fixing hook (A).

Fig 3: Identifying Return Nozzle And Fixing Hook
Courtesy of HYUNDAI MOTOR AMERICA

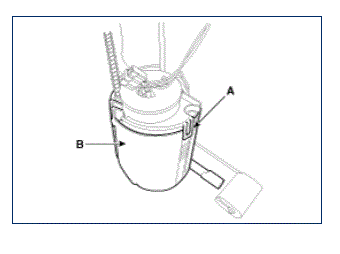

Remove the reservoir-cup (B) after releasing the fixing hooks (A).

Fig 4: Identifying Reservoir-Cup And Fixing Hooks
Courtesy of HYUNDAI MOTOR AMERICA

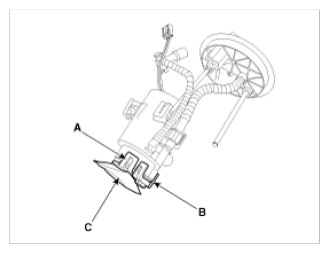

Remove the pre-filter (C) after releasing the fixing hooks (A, B)

Fig 5: Identifying Pre-Filter And Fixing Hooks
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful of O-ring.

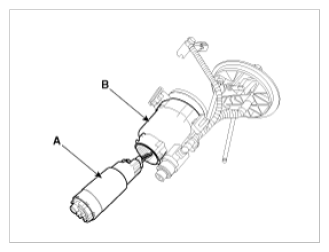

Separate the electric pump motor (A) from the fuel filter (B).

Fig 6: Identifying Electric Pump Motor And Fuel Filter
Courtesy of HYUNDAI MOTOR AMERICA

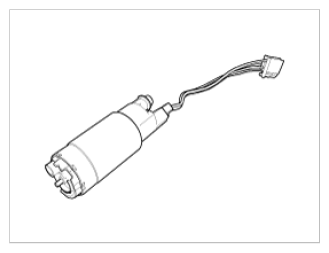

Fig 7: Identifying Electric Pump Motor
Courtesy of HYUNDAI MOTOR AMERICA
