Repair Procedures: Removal

Lift the vehicle and support the fuel tank with a jack.

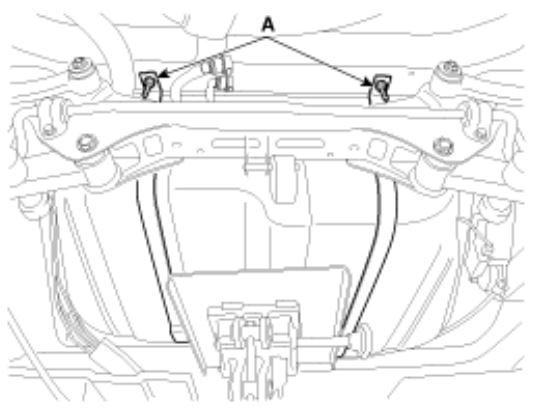

Remove the nuts (A) from fuel tank.

Fig 1: Identifying Fuel Tank Nuts
Courtesy of HYUNDAI MOTOR AMERICA

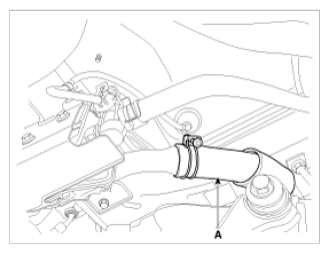

Disconnect the fuel filler hose (A).

Fig 2: Identifying Fuel Filler Hose
Courtesy of HYUNDAI MOTOR AMERICA

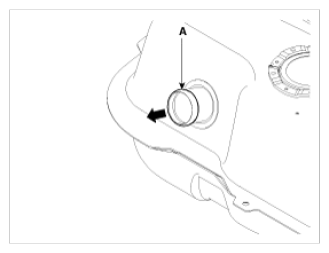

Remove the fuel shut off valve (A).

Fig 3: Removing Fuel Shut Off Valve
Courtesy of HYUNDAI MOTOR AMERICA

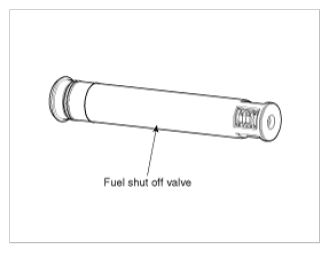

Fig 4: Identifying Fuel Shut Off Valve
Courtesy of HYUNDAI MOTOR AMERICA
