Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the fuel pump service cover (A) in the trunk.

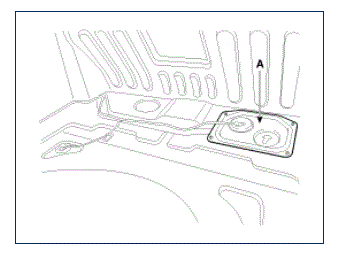

    Fig 1: Identifying Fuel Pump Service Cover
    G08809757Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
  4. Disconnect the fuel feed tube quick connector (C).

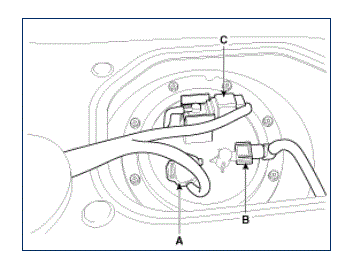

    Fig 2: Identifying Fuel Pump And Fuel Tank Pressure Sensor Connector With Feed Tube Quick Connector
    G08809758Courtesy of HYUNDAI MOTOR AMERICA
  5. Lift the vehicle and support the fuel tank with a jack.
  6. Remove the center muffler assembly.

    (Refer to "CENTER MUFFLER ")

  7. Disconnect the fuel filler hose (A).

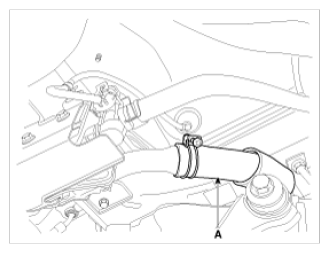

    Fig 3: Identifying Fuel Filler Hose
    G08809759Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the vapor hose quick-connector (A).

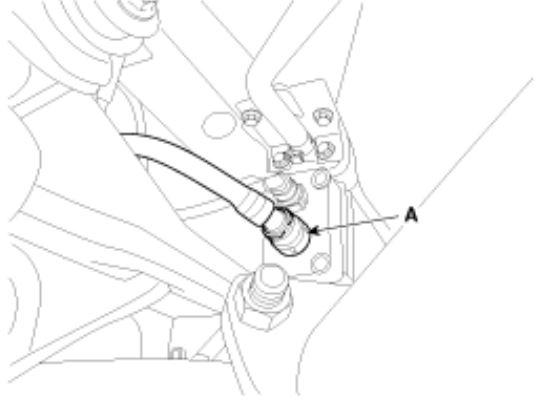

    Fig 4: Identifying Vapor Hose Quick-Connector
    G08809760Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the parking brake line (A).

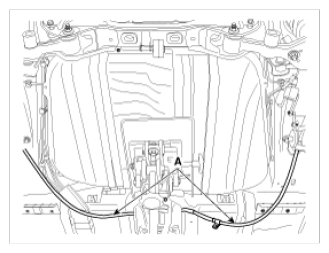

    Fig 5: Identifying Parking Brake Line
    G08809761Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the fuel tank band installation nuts (A).

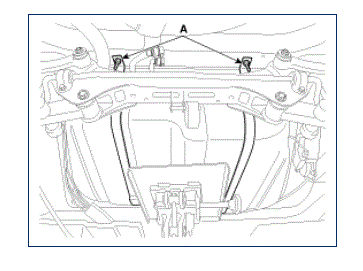

    Fig 6: Identifying Fuel Tank Band Installation Nuts
    G08809762Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the fuel tank after removing the fuel tank band (A) as below.

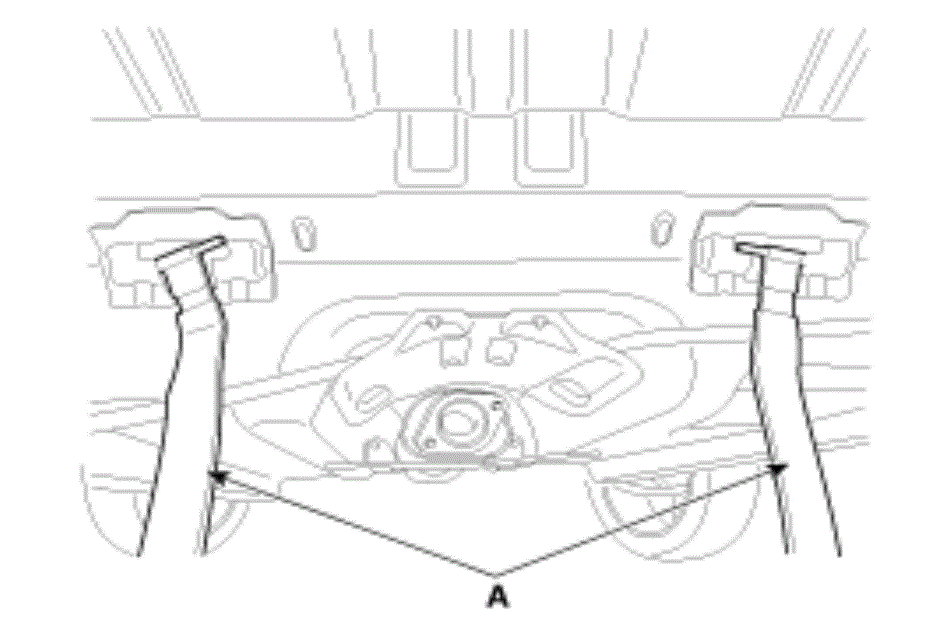

    Fig 7: Identifying Fuel Tank Band
    G08809763Courtesy of HYUNDAI MOTOR AMERICA
