Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
  4. Read "DTC Status" parameter.

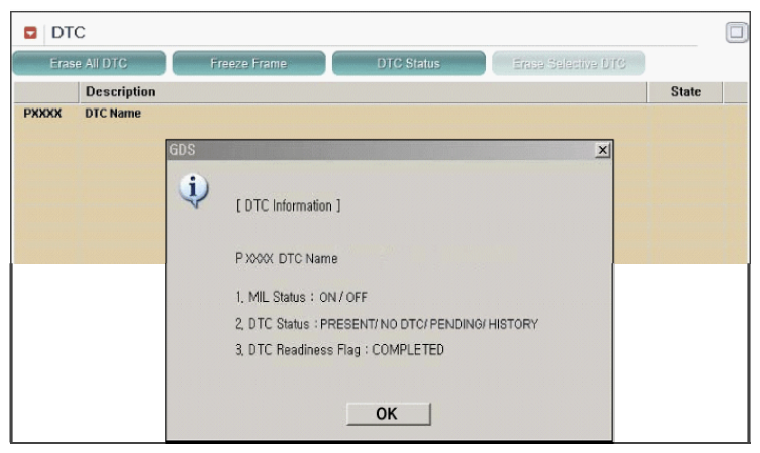

    Fig 1: Display - DTC Status Parameter
    G08817050Courtesy of HYUNDAI MOTOR AMERICA
  5. Is parameter displayed "Present fault"?

    YES

    NO

    • Clear DTC and check if this DTC is set after test-driving under enable conditions. If DTC isn't displayed after the test, it was intermittent fault. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
