Repair Procedures: Inspection

  1. Measure the primary coil resistance between terminals (+) and (-).

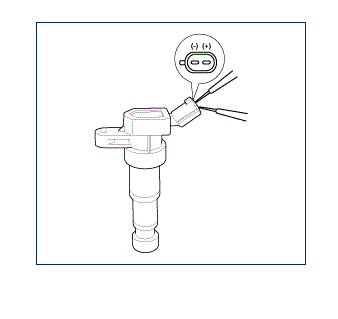

    Fig 1: Measuring Primary Coil Resistance Between Terminals
    G08809462Courtesy of HYUNDAI MOTOR AMERICA

    Standard value:  0.75Ω±15%
