Carb OBD In-Use Monitor Performance Data Collection (Dc1) (SC DC1)

A. Basic Overview of the Service Procedure

1. Fill out the Vehicle Test Sheet  located on the next page of this bulletin with the vehicle information.
2. Use GDS to read the Calibration ID  of the vehicle and enter it on the Vehicle Test Sheet.
3. Use GDS to read and screen print the In Use Performance Report  data to attach as the second page to the Vehicle Test Sheet.
4. Send the following 3 pages to fax number 909-753-0373:
   1. Completed Vehicle Test Sheet  .
   2. GDS Screen Printout of the In Use Performance Report  data.
   3. Single page copy of the main (front page) of the Dealer Repair Order  .
5. Attach Items a-c listed above and the fax machine's send receipt (if available) to the Repair Order for claim record.
   NOTE: Confirm the fax transmitted successfully. It is required to be sent to fax number 909-753-0373 for you to receive claim payment, as Hyundai must submit the data to CARB.
   NOTE: If you could not reach the primary fax number provided above then send your fax to the secondary fax number 909-628-7682.

B. Vehicle Test Sheet and Data to be completed for each vehicle

As found on the next 3 pages:

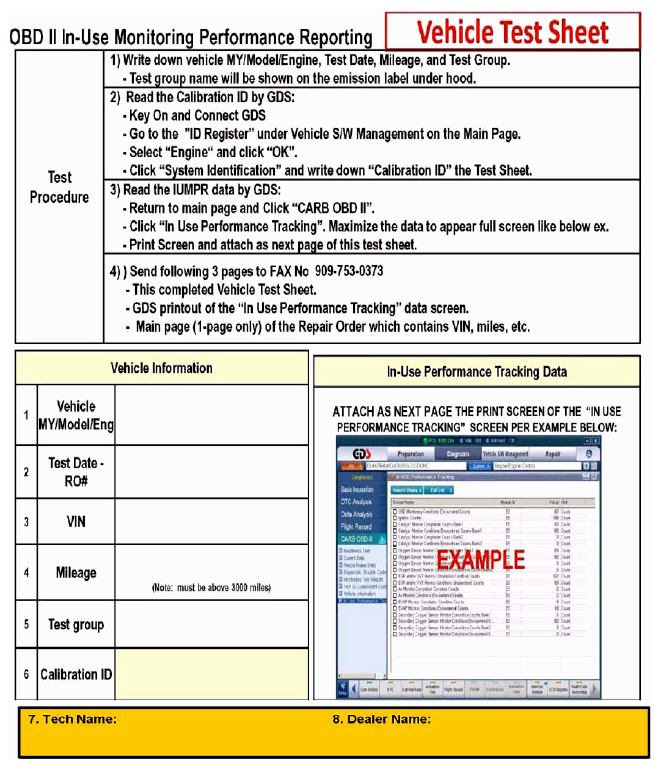

• Blank Vehicle Test Sheet  to be completed for each qualifying vehicle.
• Example of a completed Vehicle Test Sheet  with the GDS Screen Printout of the In Use Performance Report  data attached, as required per the included service procedure.

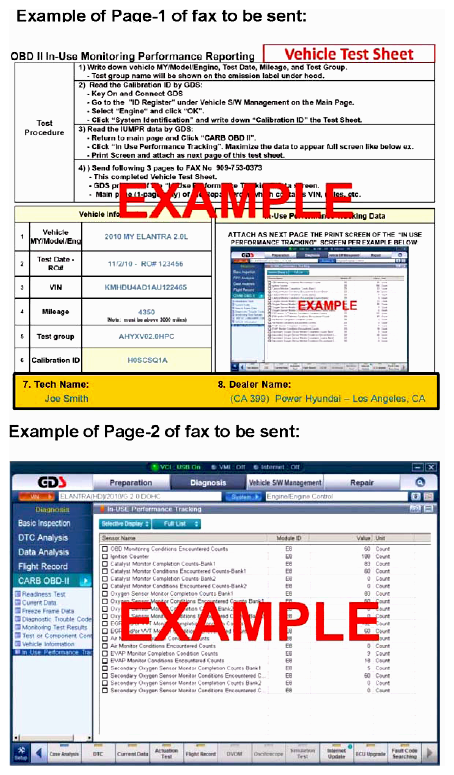

Example of a completed Vehicle Test Sheet with printout of the GDS "In Use Performance Report" data attached as page#2:

Detailed Service Procedure

1. Document the following information on the Vehicle Test Sheet (see page-4 of this bulletin):
   • Model Year/Vehicle Name/Engine
   • Test Date (date you collected this data)
   • RO Number (dealer repair order)
   • VIN
   • Mileage

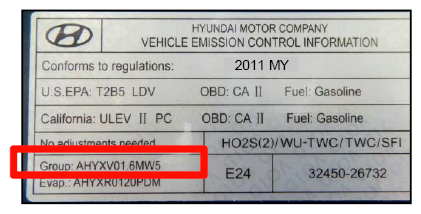

2. Document the Test Group  found on the Underhood Emission Label.  Example below:
3. Make sure that you have conducted the latest internet update of your GDS software to be able to read IUMPR values correctly.

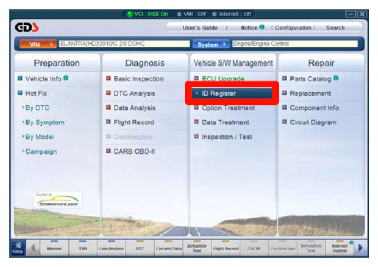

4. Connect GDS to the vehicle and with the ignition on (engine does not need to be running) select ID Register  under Vehicle S/W Management  screen:

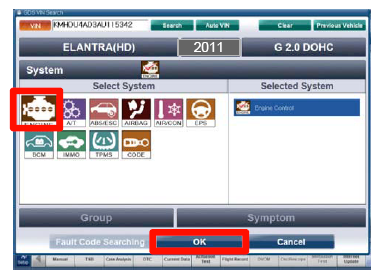

5. Select Engine  and OK  :

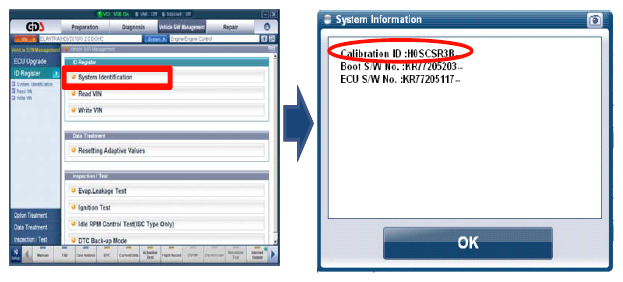

6. Select System Identification  then read the Calibration ID  and enter on the Vehicle Test Sheet  :
   NOTE: For some models it may not display exactly as shown above. It may for example state "Sub Calibration Number" rather than Calibration ID, just be sure to use the item that includes the term "Calibration".

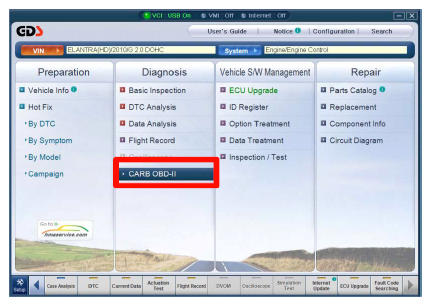

7. Go back to the main page of the GDS and select CARB OBDII  under Vehicle Diagnosis:

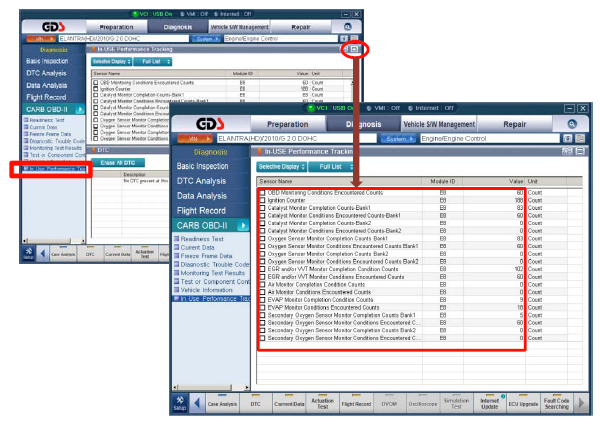

8. Select In Use Performance Tracking  and maximize  data display on the screen as shown to verify all data is displayed before it will be printed in the next step:
   NOTE: If all values indicate "Not Supported"  or "0"  check to make sure you have GDS software version 1.09 or later. If the software version is correct the vehicle will not qualify for this data collection, as it may have received a recent ECM Update or battery replacement/reset of the data values.

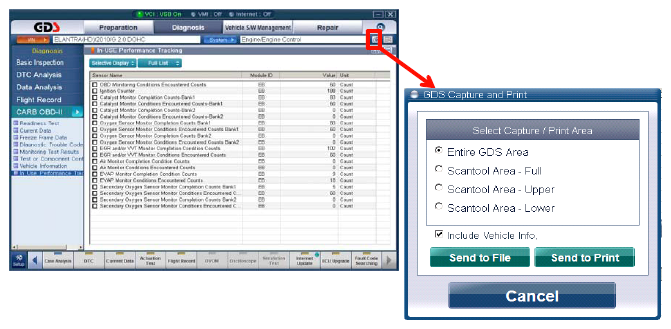

9. Print the GDS screen by selecting the camera icon in the upper right corner of the screen and then select Entire GDS Area and Send to Print.
10. Send the following 3 pages to fax number 909-753-0373:
    1. Completed Vehicle Test Sheet  .
    2. GDS Screen Printout of the In Use Performance Report  data.
    3. Single page copy of the front page of the Dealer Repair Order  which displays the VIN, miles, RO#, etc.
11. Attach the 3 pages of items a-c listed above and the fax machine's send receipt (if available) to the Repair Order for claim record.
