Repair Procedures: Disassembly

  1. Loosen the screw (6ea) and remove the lower cover (A) from the steering wheel body.

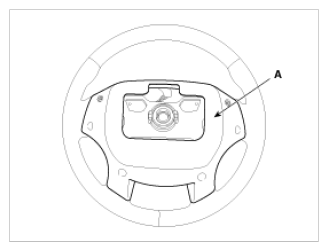

    Fig 1: Identifying Steering Wheel Body Lower Cover
    G08810187Courtesy of HYUNDAI MOTOR AMERICA

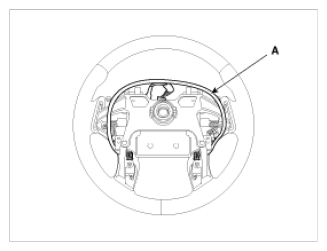

  2. Disconnect the Wiring (A).
    Fig 2: Identifying Wiring
    G08810188Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the screw (2ea) and remove the remote control assembly (A) from the steering wheel body.

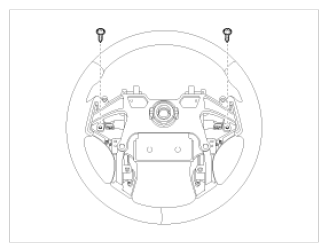

    Fig 3: Identifying Remote Control Assembly Mounting Screws
    G08810189Courtesy of HYUNDAI MOTOR AMERICA

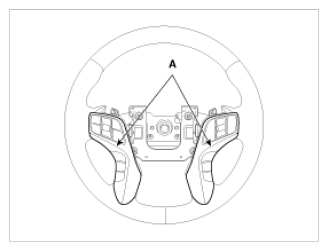

    Fig 4: Identifying Remote Control Assembly
    G08810190Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse of the removal.
