Repair Procedures: Installation

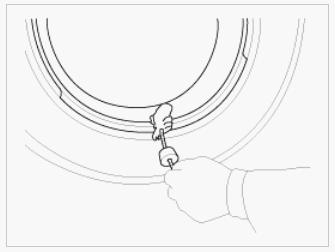

Apply tire soap or lubrication to the top and bottom tire beads.

Fig 1: Applying Tire Soap Or Lubrication To Top And Bottom Tire Beads
Courtesy of HYUNDAI MOTOR AMERICA

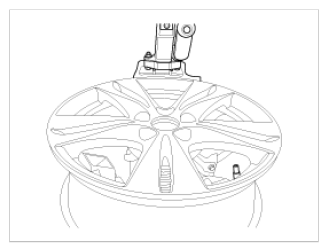

To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.

Fig 2: Positioning Valve At 5 O'Clock Position
Courtesy of HYUNDAI MOTOR AMERICA

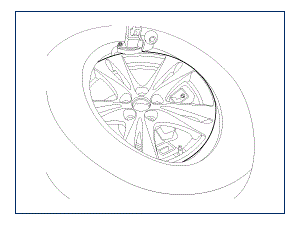

Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock). Rotate the rim clockwise and push down on the tire at the 3 o'clock position to fit bottom bead.

Fig 3: Pushing Down On Tire At 3 O'Clock Position
Courtesy of HYUNDAI MOTOR AMERICA

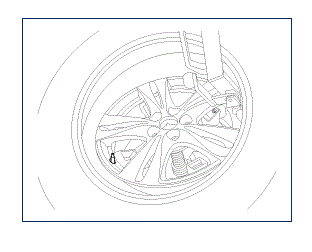

After bottom bead is on tire, rotate the rim until the valve is at the 5 o'clock position relative to the head on the tire changing machine. Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.

Fig 4: Rotating Rim Until Valve At 5 O'Clock Position
Courtesy of HYUNDAI MOTOR AMERICA

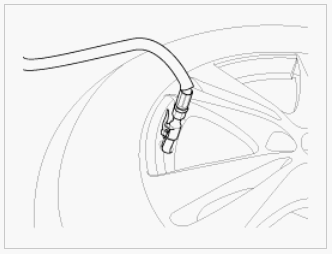

Inflate the tire until both beads seat.
Tire pressure: 2.2kg/cm² (32psi)

Fig 5: Inflating Tire Until Both Beads Seat
Courtesy of HYUNDAI MOTOR AMERICA
