Components and Components Location: Components

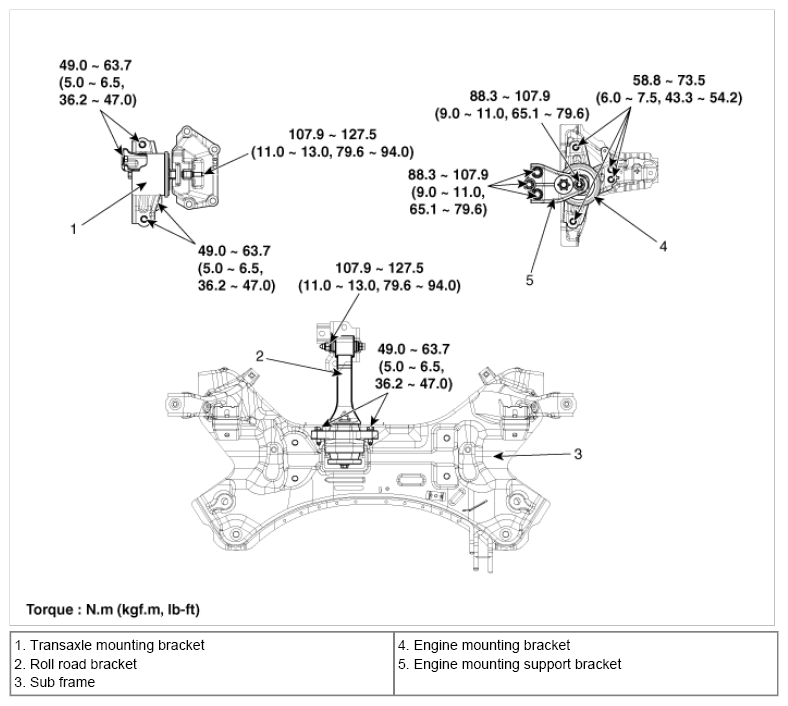

Fig 1: Engine Mounting Bracket, Roll Road Bracket And Sub Frame With Torque Specifications
G08809104Courtesy of HYUNDAI MOTOR AMERICA
