Engine Mounting Support Bracket

Install the jack to the edge of upper oil pan (A) to support the engine.

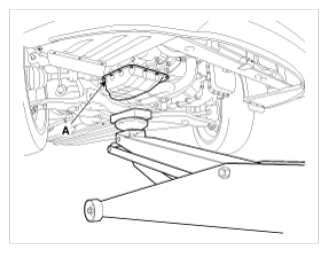

Fig 1: Supporting Engine Using Jack To Edge Of Upper Oil Pan
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Insert the rubber block between jack and upper oil pan.
Disconnect the ground cable (A), and then remove the engine mounting support bracket (B).
Tightening torque:

88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

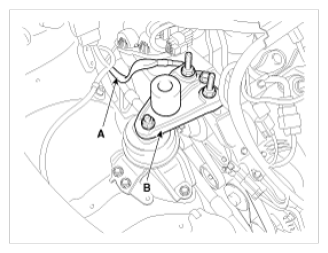

Fig 2: Identifying Engine Mounting Support Bracket And Ground Cable
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
