Roll Rod Bracket

Remove the engine room under cover.
Remove the roll rod bracket (A).
Tightening torque

Bolt (B):

107.9 ~ 127.5N.m (11.0 ~ 13.0kgf.m, 79.6 ~ 94.0lb-ft)

Bolts (C):

49.0 ~ 63.7N.m (5.0 ~ 6.5kgf.m, 36.2 ~ 47.0lb-ft)

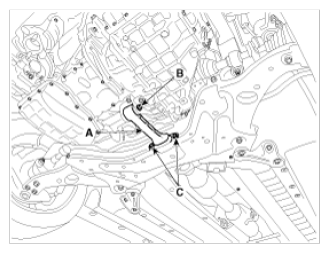

Fig 1: Identifying Roll Rod Bracket And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Do not reuse: Bolt (B) (Loctited)
Install in the reverse order of removal.
