Repair Procedures: Installation

  1. Installation is the reverse of removal.
    NOTE:
    • When installing, apply the ATF oil or white vaseline to the O-ring (A) not to be damaged.

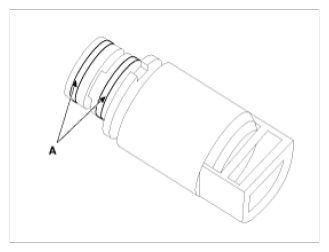

      Fig 1: Identifying Solenoid Valve O-Rings
      G08809975Courtesy of HYUNDAI MOTOR AMERICA
    • Adding automatic transaxle fluid.

      (Refer to "FLUID ")

    • Use new valve body gasket (A).

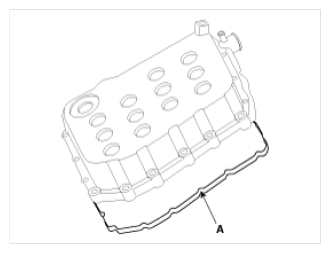

      Fig 2: Identifying Valve Body Gasket
      G08809976Courtesy of HYUNDAI MOTOR AMERICA
