Repair Procedures: Installation

  1. Installation is the reverse of removal.
    NOTE:
    • Adding automatic transaxle fluid.

      (Refer to "FLUID ")

    • Use new valve body gasket (A).

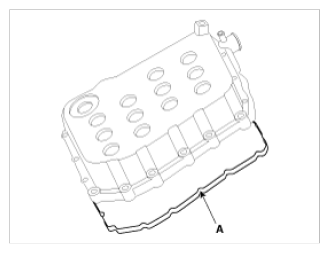

      Fig 1: Identifying Valve Body Gasket
      G08809950Courtesy of HYUNDAI MOTOR AMERICA
