Driver Power Window Switch

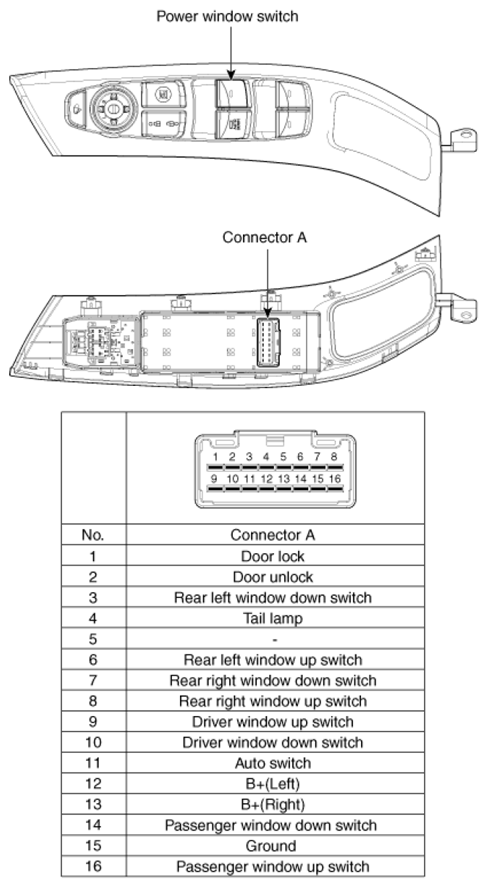

Fig 1: Driver Power Window Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
