Accelerator Position Sensor (APS): Specifications: Specification

OUTPUT VOLTAGE SPECIFICATION

Accelerator Position	Output Voltage (V)
	APS1	APS2
C.T	0.7 ~ 0.8	0.29 ~ 0.46
W.O.T	3.85 ~ 4.35	1.93 ~ 2.18

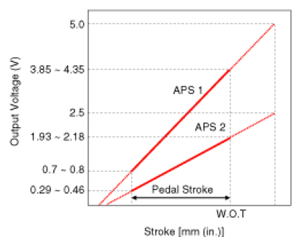

Fig 1: Output Voltage Graph

Courtesy of HYUNDAI MOTOR CO.
