Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the CVVT oil control valve connector (A).
3. Remove the installation bolt (B), and then remove the valve from the engine.

[Bank 1/Intake]

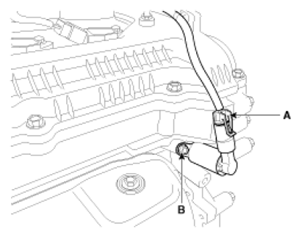

Fig 1: Identifying CVVT Oil Control Valve Connector

Courtesy of HYUNDAI MOTOR CO.

[Bank 1/Exhaust]

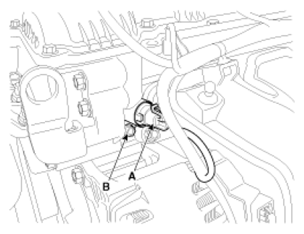

Fig 2: Identifying CVVT Oil Control Valve Connector (Exhaust)

Courtesy of HYUNDAI MOTOR CO.
