Repair Procedures: Removal

WARNING:
  • DON'T remove the camshaft position sensor during engine running or right after engine stops, or a scald by the flowed out engine oil may occur.

[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the camshaft position sensor connector (B) after removing the clip (A).
  3. Remove the installation bolt (C), and then remove the sensor.

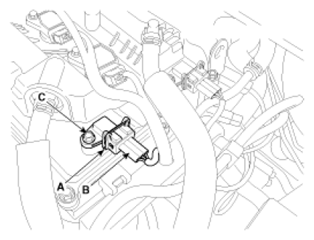

    Fig 1: Identifying Camshaft Position Sensor Connector
    G07264073Courtesy of HYUNDAI MOTOR CO.

[Bank 1/Exhaust]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the camshaft position sensor connector (B) after removing the clip (A).
  3. Remove the installation bolt (C), and then remove the sensor.

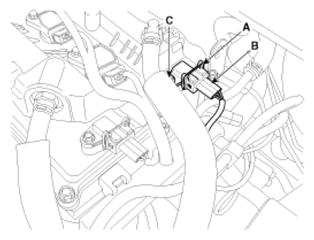

    Fig 2: Identifying Camshaft Position Sensor Connector And Clips
    G07264074Courtesy of HYUNDAI MOTOR CO.
