Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation tube quick-connector (B) from the fuel tank air filter and canister close valve.

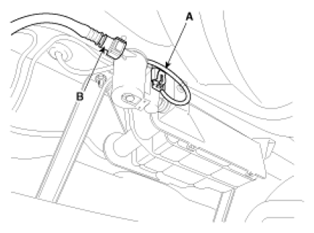

    Fig 1: Identifying Canister Close Valve Connector
    G07264123Courtesy of HYUNDAI MOTOR CO.
  5. Remove the fuel tank air filter and canister close valve assembly (A) after rotating it as below.

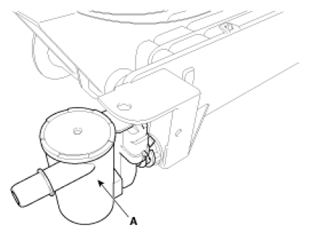

    Fig 2: Identifying Canister Close Valve Assembly
    G07264124Courtesy of HYUNDAI MOTOR CO.

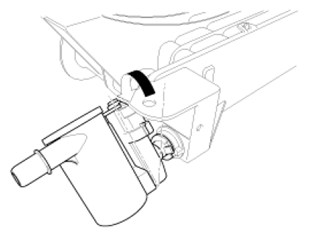

    Fig 3: Removing Fuel Tank Air Filter And Canister Close Valve Assembly
    G07264125Courtesy of HYUNDAI MOTOR CO.
  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.
    Fig 4: Identifying Lever
    G07264126Courtesy of HYUNDAI MOTOR CO.
    Fig 5: Identifying Canister Close Valve
    G07264127Courtesy of HYUNDAI MOTOR CO.
