Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the crankshaft position sensor connector (A) and remove the sensor after removing the installation bolt.

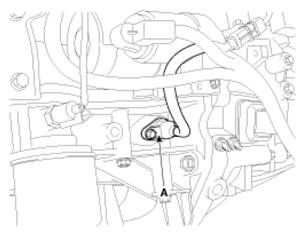

    Fig 1: Identifying Crankshaft Position Sensor Connector
    G07264068Courtesy of HYUNDAI MOTOR CO.
