Repair Procedures: Removal

NOTE: In the case of the vehicle equipped with immobilizer or button engine start system, perform "Key Teaching" procedure together (Refer to BUTTON ENGINE START SYSTEM or "BUTTON ENGINE START SYSTEM ").
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the ECM Connector (A).

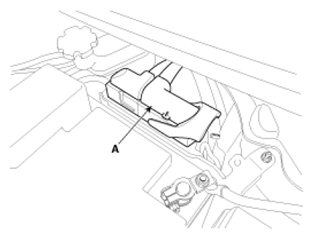

    Fig 1: Identifying ECM Connector
    G07264039Courtesy of HYUNDAI MOTOR CO.
  3. Remove the battery (Refer to "CHARGING SYSTEM ").
  4. Remove the mounting bolts (A) and a nut (B), and then remove the ECM (C).

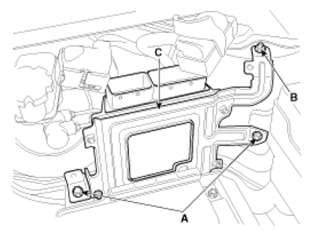

    Fig 2: Identifying Mounting Bolts
    G07264040Courtesy of HYUNDAI MOTOR CO.
