Circuit Diagram

(M/T)

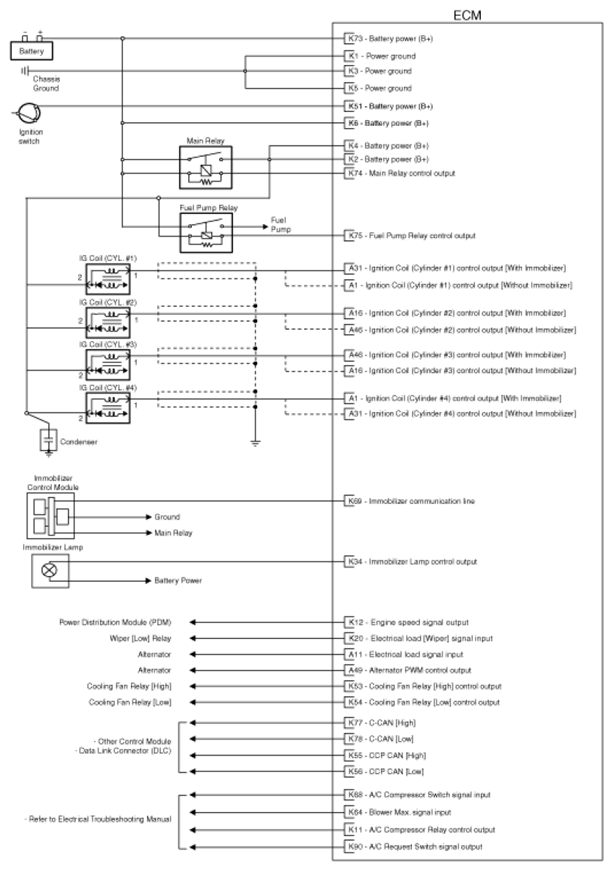

Fig 1: ECM (M/T) - Circuit Diagram (1 Of 4)

G07264031

Courtesy of HYUNDAI MOTOR CO.

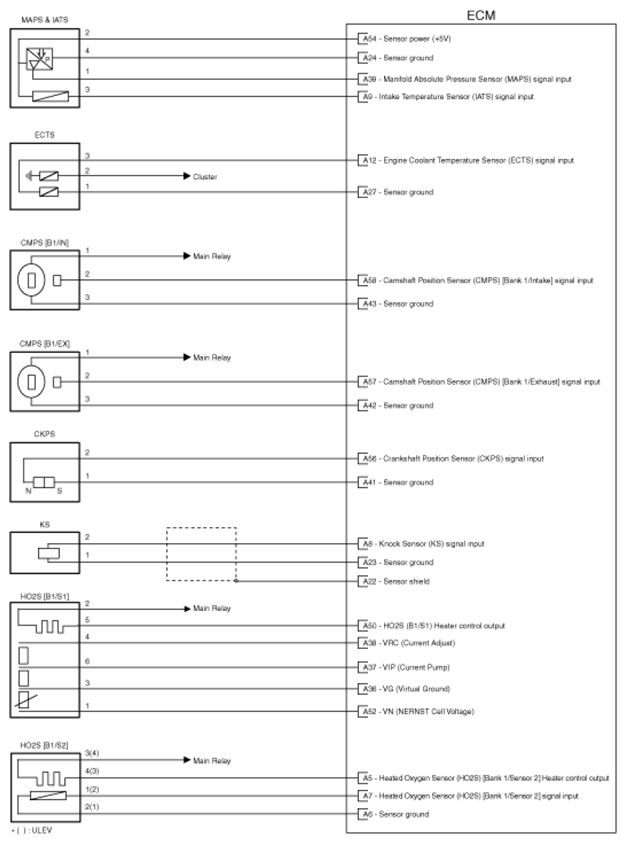

Fig 2: ECM (M/T) - Circuit Diagram (2 Of 4)

G07264032

Courtesy of HYUNDAI MOTOR CO.

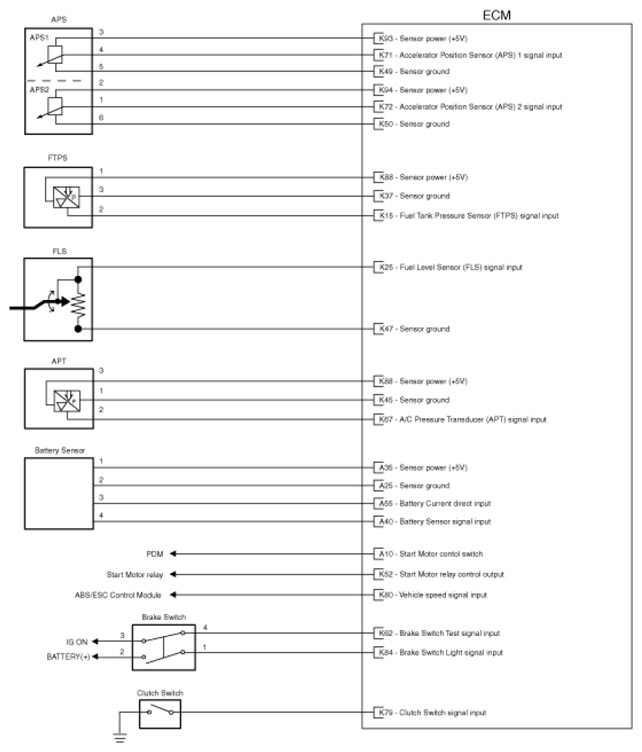

Fig 3: ECM (M/T) - Circuit Diagram (3 Of 4)

G07264033

Courtesy of HYUNDAI MOTOR CO.

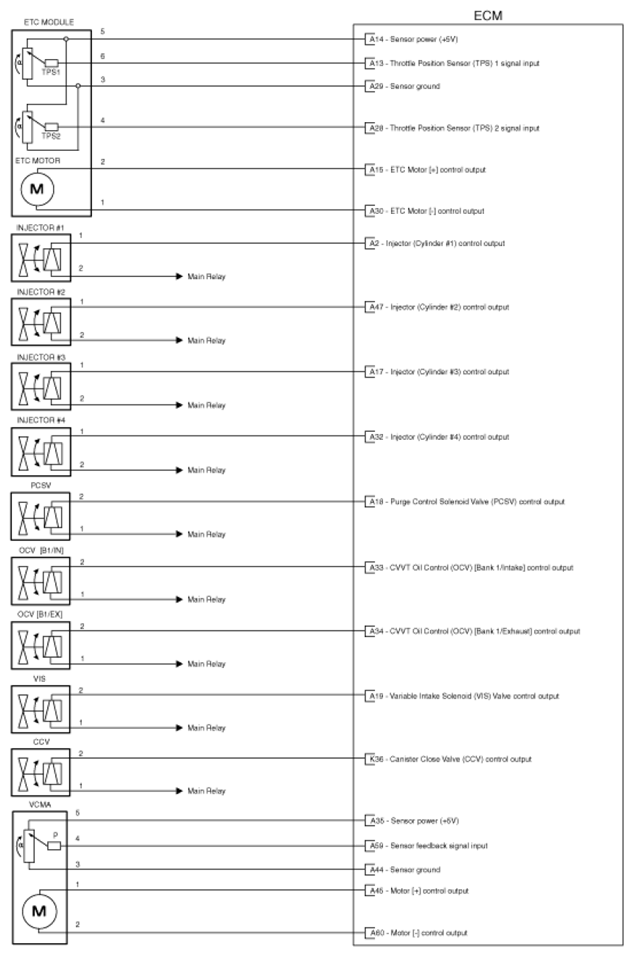

Fig 4: ECM (M/T) - Circuit Diagram (4 Of 4)

G07264034

Courtesy of HYUNDAI MOTOR CO.

(A/T)

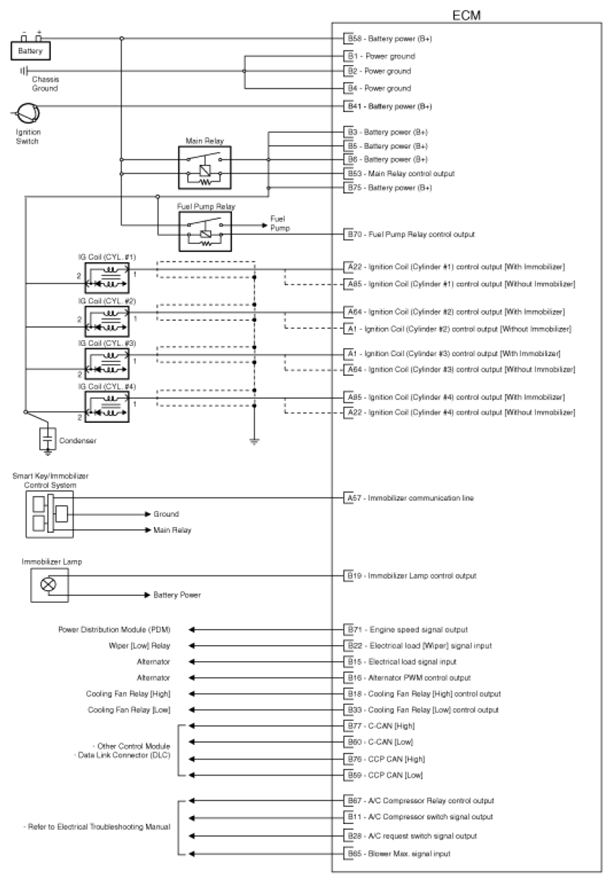

Fig 5: ECM (A/T) - Circuit Diagram (1 Of 4)

G07264035

Courtesy of HYUNDAI MOTOR CO.

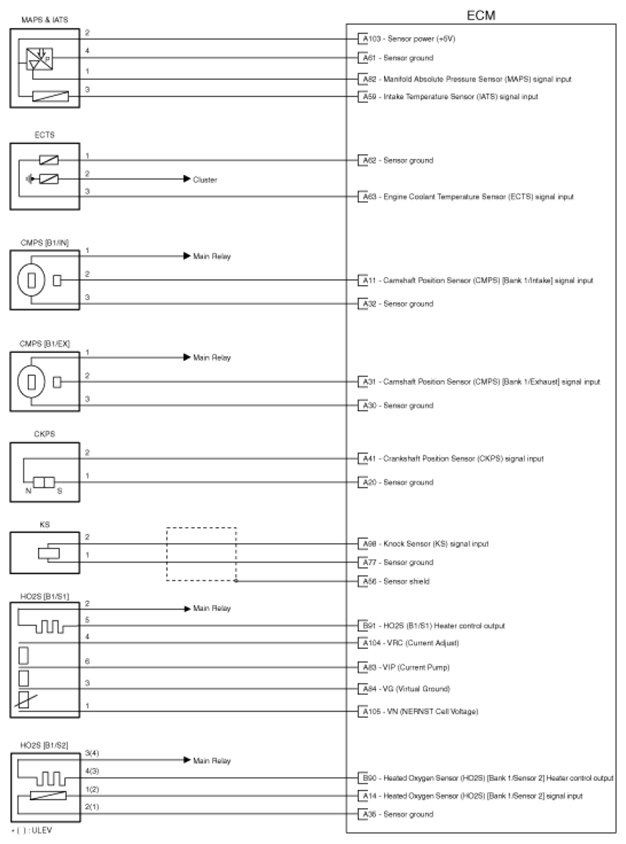

Fig 6: ECM (A/T) - Circuit Diagram (2 Of 4)

G07264036

Courtesy of HYUNDAI MOTOR CO.

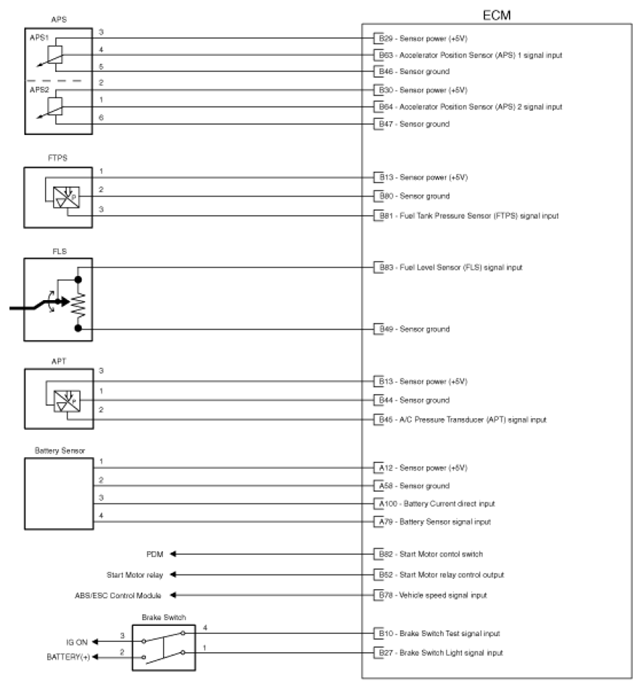

Fig 7: ECM (A/T) - Circuit Diagram (3 Of 4)

G07264037

Courtesy of HYUNDAI MOTOR CO.

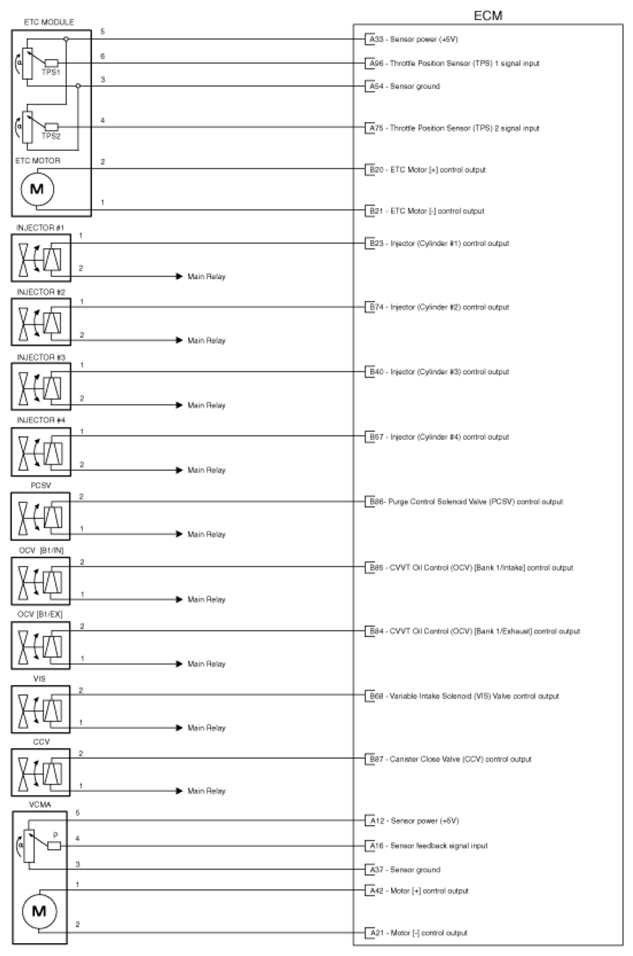

Fig 8: ECM (A/T) - Circuit Diagram (4 Of 4)

G07264038

Courtesy of HYUNDAI MOTOR CO.
