ECM Terminal And Input/Output signal (M/T)

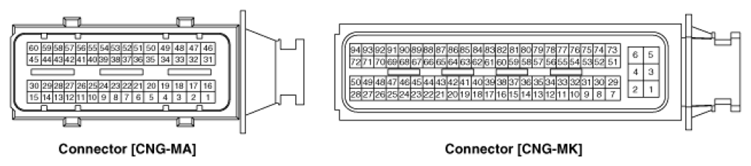

Fig 1: Identifying ECM Connectors Terminal
G07264029Courtesy of HYUNDAI MOTOR CO.

ECM Terminal Function

CONNECTOR [CNG-MA]

Pin No. Description Connected to
1 Ignition Coil (Cylinder #1) control output Ignition Coil (Cylinder #1) [Without Immobilizer]
Ignition Coil (Cylinder #4) control output Ignition Coil (Cylinder #4) [With Immobilizer]
2 Injector (Cylinder #1) control output Injector (Cylinder #1)
3 -
4 -
5 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] Heater control output Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
6 Sensor ground Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
7 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] signal input Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
8 Knock Sensor (KS) signal input Knock Sensor (KS)
9 Intake Air Temperature Sensor (IATS) signal input Intake Air Temperature Sensor (IATS)
10 Start Motor control switch Power Distribution Module (PDM)
11 Electrical load signal input Alternator
12 Engine Coolant Temperature Sensor (ECTS) signal input Engine Coolant Temperature Sensor (ECTS)
13 Throttle Position Sensor (TPS) 1 signal input Throttle Position Sensor (TPS) 1
14 Sensor power (+5V) Throttle Position Sensor (TPS) 1, 2
15 ETC Motor [+] control output ETC Motor
16 Ignition Coil (Cylinder #3) control output Ignition Coil (Cylinder #3) [Without Immobilizer]
Ignition Coil (Cylinder #2) control output Ignition Coil (Cylinder #2) [With Immobilizer]
17 Injector (Cylinder #3) control output Injector (Cylinder #3)
18 Purge Control Solenoid Valve (PCSV) control output Purge Control Solenoid Valve (PCSV)
19 Variable Intake Solenoid (VIS) Valve control output Variable Intake Solenoid (VIS) Valve
20 -
21 -
22 Sensor shield ground Knock Sensor (KS)
23 Sensor ground Knock Sensor (KS)
24 Sensor ground Manifold Absolute Pressure Sensor (MAPS)
25 Sensor ground Battery Sensor
26 -
27 Sensor ground Engine Coolant Temperature Sensor (ECTS)
28 Throttle Position Sensor (TPS) 2 signal input Throttle Position Sensor (TPS) 2
29 Sensor ground Throttle Position Sensor (TPS) 1, 2
30 ETC Motor [-] control output ETC Motor
31 Ignition Coil (Cylinder #4) control output Ignition Coil (Cylinder #4) [Without Immobilizer]
Ignition Coil (Cylinder #1) control output Ignition Coil (Cylinder #1) [With Immobilizer]
32 Injector (Cylinder #4) control output Injector (Cylinder #4)
33 CVVT Oil Control (OCV) Valve [Bank 1/Intake] control output CVVT Oil Control Valve (OCV) [Bank 1/Intake]
34 CVVT Oil Control (OCV) Valve [Bank 1/Exhaust] control output CVVT Oil Control Valve (OCV) [Bank 1/Exhaust]
35 Sensor power (+5V) Variable Charge Motion Actuator (VCMA)
Battery Sensor
36 VG (Virtual Ground) Heated Oxygen Sensor [Bank 1/Sensor 1]
37 VIP (Current Pump) Heated Oxygen Sensor [Bank 1/Sensor 1]
38 VRC (Current Adjust) Heated Oxygen Sensor [Bank 1/Sensor 1]
39 Manifold Absolute Pressure Sensor (MAPS) signal input Manifold Absolute Pressure Sensor (MAPS)
40 Battery Sensor signal Battery Sensor
41 Sensor ground Crankshaft Position Sensor (CKPS)
42 Sensor ground Camshaft Position Sensor (CMPS) [Bank 1/Exhaust]
43 Sensor ground Camshaft Position Sensor (CMPS) [Bank 1/Intake]
44 Sensor ground Variable Charge Motion Actuator (VCMA)
45 Motor [+] control output Variable Charge Motion Actuator (VCMA)
46 Ignition Coil (Cylinder #2) control output Ignition Coil (Cylinder #2) [Without Immobilizer]
Ignition Coil (Cylinder #3) control output Ignition Coil (Cylinder #3) [With Immobilizer]
47 Injector (Cylinder #2) control output Injector (Cylinder #2)
48 -
49 Alternator PWM control output Alternator
50 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] Heater control output Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
51 -
52 VN (NERNST Cell Voltage) Heated Oxygen Sensor [Bank 1/Sensor 1]
53 -
54 Sensor power (+5V) Manifold Absolute Pressure Sensor (MAPS)
55 Battery Current Direct input Battery Sensor
56 Crankshaft Position Sensor (CKPS) signal input Crankshaft Position Sensor (CKPS)
57 Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] signal input Camshaft Position Sensor (CMPS) [Bank 1/Exhaust]
58 Camshaft Position Sensor (CMPS) [Bank 1/Intake] signal input Camshaft Position Sensor (CMPS) [Bank 1/Intake]
59 Sensor feedback signal input Variable Charge Motion Actuator (VCMA)
60 Motor [-] control output Variable Charge Motion Actuator (VCMA)
CONNECTOR [CNG-MK]

Pin No. Description Connected to
1 Power ground Chassis Ground
2 Battery power (B+) Main Relay
3 Power ground Chassis Ground
4 Battery power (B+) Main Relay
5 Power ground Chassis Ground
6 Battery power (B+) Main Relay
7 -
8 -
9 -
10 -
11 A/C Compressor Relay control output A/C Compressor Relay
12 Engine speed signal output Power Distribution Module (PDM)
13 -
14 -
15 Fuel Tank Pressure Sensor (FTPS) signal input Fuel Tank Pressure Sensor (FTPS)
16 -
17 -
18 -
19 -
20 Electrical load [Wiper] signal input Wiper [Low] Relay
21 -
22 -
23 -
24 -
25 Fuel Level Sensor (FLS) signal input Fuel Level Sensor (FLS)
26 -
27 -
28 -
29 -
30 -
31 -
32 -
33 -
34 Immobilizer Lamp control output Immobilizer Lamp
35 -
36 Canister Close Valve (CCV) control output Canister Close Valve (CCV)
37 Sensor ground Fuel Tank Pressure Sensor (FTPS)
38 -
39 -
40 -
41 -
42 -
43 -
44 -
45 Sensor ground A/C Pressure Transducer (APT)
46 -
47 Sensor ground Fuel Level Sensor (FLS)
48 -
49 Sensor ground Accelerator Position Sensor (APS) 1
50 Sensor ground Accelerator Position Sensor (APS) 2
51 Battery power (B+) Ignition Switch
52 Start Motor relay control output Start Motor relay
53 Cooling Fan Relay [High] control output Cooling Fan Relay [High]
54 Cooling Fan Relay [Low] control output Cooling Fan Relay [Low]
55 CCP CAN [High] Other control module, Data Link Connector (DLC),
56 CCP CAN [Low] Other control module, Data Link Connector (DLC),
57 -
58 -
59 -
60 -
61 -
62 Brake Test Switch signal input Brake Switch
63 -
64 Blower Max. signal input Heater & A/C Control module
65 -
66 -
67 A/C Pressure Transducer (APT) signal input A/C Pressure Transducer (APT)
68 A/C Compressor switch signal output A/C Compressor switch
69 Immobilizer communication line Immobilizer control module
70 -
71 Accelerator Position Sensor (APS) 1 signal input Accelerator Position Sensor (APS) 1
72 Accelerator Position Sensor (APS) 2 signal input Accelerator Position Sensor (APS) 2
73 Battery power (B+) Battery
74 Main Relay control output Main Relay
75 Fuel Pump Relay control output Fuel Pump Relay
76 -
77 C-CAN [High] Other control module, Data Link Connector (DLC),
78 C-CAN [Low] Other control module, Data Link Connector (DLC),
79 Clutch switch signal input Clutch switch
80 Vehicle speed signal input ABS/ESC Control Unit
81 -
82 -
83 -
84 Brake Light Switch signal input Brake Switch
85 -
86 -
87 -
88 Sensor power (+5V) Fuel Tank Pressure Sensor (FTPS)
A/C Pressure Transducer (APT)
89 -
90 A/C request switch signal output Heater & A/C Control module
91 -
92 -
93 Sensor power (+5V) Accelerator Position Sensor (APS) 1
94 Sensor power (+5V) Accelerator Position Sensor (APS) 2

ECM Terminal Input/Output signal

CONNECTOR [CNG-MA]

Pin No. Description Condition Type Level
1 Ignition Coil (Cylinder #1) control output Idle Pulse Turn on: Max. 1.6V
Turn off: Battery voltage
Ignition Coil (Cylinder #4) control output
2 Injector (Cylinder #1) control output Idle DC Hi: Battery voltage
LO: Max. 0.5V
48~50V
3 -
4 -
5 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] Heater control output Relay OFF DC Battery voltage
Relay ON Max. 0.5V
6 Sensor ground Idle DC Max. 0.5V
7 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] signal input Idle Analog
DC
Min. 0.6V ~ Max. 1.0V
8 Knock Sensor (KS) signal input Idle Analog/Frequency Freq.: Min. 8KHz ~ Max. 12KHz
Level: Min. 180 ~ Max. 300mVpp
9 Intake Air Temperature Sensor (IATS) signal input Idle Analog Min. 0.1V ~ Max. 4.7V
10 Start Motor control switch Switch ON Digital Battery voltage
Switch OFF Min. -0.3V ~ Max. 0.5V
11 Electrical load signal input Idle PWM Freq.: 125Hz or 200Hz or 60Hz
Duty rate 0% ~ 100%
12 Engine Coolant Temperature Sensor (ECTS) signal input Idle Analog Min. 0.1V ~ Max. 4.7V
13 Throttle Position Sensor (TPS) 1 signal input Idle Analog Min. 0.4V ~ Max. 4.5V
14 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON Min. 4.75V ~ Max. 5.25V
15 ETC Motor [+] control output Idle PWM Operating freq.: 1000Hz (estimated)
Forward direction
Turn on: Battery voltage
Freewheeling: Max. 0.1V
Reverse direction
Turn on: Max. 0.1V
Freewheeling: Max. 0.1V
16 Ignition Coil (Cylinder #3) control output Idle Pulse Turn on: Max. 1.6V
Turn off: Battery voltage
Ignition Coil (Cylinder #2) control output
17 Injector (Cylinder #3) control output Idle DC Hi: Battery voltage
LO: Max. 0.5V
48~50V
18 Purge Control Solenoid Valve (PCSV) control output Relay OFF DC Battery voltage
Relay ON Max. 1.76V
19 Variable Intake Solenoid (VIS) Valve control output Relay OFF DC Battery voltage
Relay ON Max. 1.76V
20 -
21 -
22 Sensor shield ground Idle DC Max. 0.5V
23 Sensor ground Idle DC Max. 0.5V
24 Sensor ground Idle DC Max. 0.5V
25 Sensor ground Idle DC Max. 0.5V
26 -
27 Sensor ground Idle DC Max. 0.5V
28 Throttle Position Sensor (TPS) 2 signal input Idle Analog Min. 0.4V ~ Max. 4.5V
29 Sensor ground Idle DC Max. 0.5V
30 ETC Motor [-] control output Idle PWM Operating freq.: 1000Hz (estimated)
Forward direction
Turn on: max 0.1V
Freewheeling: max 0.1V
Reverse direction
Turn on: Battery voltage
Freewheeling: max 0.1V
31 Ignition Coil (Cylinder #4) control output Idle Pulse Turn on: Max. 1.6V
Turn off: Battery voltage
Ignition Coil (Cylinder #1) control output
32 Injector (Cylinder #4) control output Idle DC Hi: Battery voltage
LO: Max. 0.5V
48~50V
33 CVVT Oil Control (OCV) Valve [Bank 1/Intake] control output Idle PWM Operating freq. range: 300Hz
Duty rate: 0% ~ 100%
34 CVVT Oil Control (OCV) Valve [Bank 1/Exhaust] control output Idle PWM Operating freq. range: 300Hz
Duty rate: 0% ~ 100%
35 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON Min. 4.75V ~ Max. 5.25V
36 VG (Virtual Ground) Idle Analog Min. 0.2V ~ Max. 5.2V
37 VIP (Current Pump) Idle Analog Min. 0.2V ~ Max. 5.2V
38 VRC (Current Adjust) Idle Analog Min. 0.2V ~ Max. 5.2V
39 Manifold Absolute Pressure Sensor (MAPS) signal input Idle Analog Min. 0.8V ~ Max. 4.2V
40 Battery Sensor signal Idle Analog Min. 0.3V ~ Max. 4.7V
41 Crankshaft Position Sensor (-) signal input Idle Frequency Vpp Min.: 18V at Idle (for 1 rail)
Vpp Max.: 90V at 5000 RPM (for 1 rail)
42 Sensor ground Idle DC Max. 0.5V
43 Sensor ground Idle DC Max. 0.5V
44 Sensor ground Idle DC Max. 0.5V
45 Motor [+] control output Idle PWM Operating freq.: 1000Hz (estimated)
Forward direction
Turn on: Battery voltage
Freewheeling: Max. 0.1V
Reverse direction
Turn on: Max. 0.1V
Freewheeling: Max. 0.1V
46 Ignition Coil (Cylinder #2) control output Idle Pulse Turn on: Max. 1.6V
Turn off: Battery voltage
Ignition Coil (Cylinder #3) control output
47 Injector (Cylinder #2) control output Idle DC Hi: Battery voltage
LO: Max. 0.5V
48~50V
48 -
49 Alternator PWM control output IG OFF PWM Battery voltage
IG ON Max. 0.5V
50 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] Heater control output Relay OFF DC Battery voltage
Relay ON Max. 0.5V
51 -
52 VN (NERNST Cell Voltage) Idle Analog Min. 0.2V ~ Max. 5.2V
53 -
54 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON Min. 4.75V ~ Max. 5.25V
55 Battery Current Direct Input Idle Analog Min. 0.4V ~ Max. 4.5V
56 Crankshaft Position Sensor (+) signal input Idle Frequency Vpp Min.: 18V at Idle (for 1 rail)
Vpp Max.: 90V at 5000 RPM (for 1 rail)
57 Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] signal input Idle Pulse Around 7Hz at 850 RPM
Around 25Hz at 3000 RPM
58 Camshaft Position Sensor (CMPS) [Bank 1/Intake] signal input Idle Pulse Around 7Hz at 850 RPM
Around 25Hz at 3000 RPM
59 Sensor feedback signal input Idle Analog Min. 0.1V ~ Max. 4.6V
60 Motor [-] control output Idle PWM Operating freq.: 1000Hz (estimated)
Forward direction
Turn on: max 0.1V
Freewheeling: max 0.1V
Reverse direction
Turn on: Battery voltage
Freewheeling: max 0.1V
CONNECTOR [CNG-MK]

Pin No. Description Condition Type Level
1 Power ground Idle DC Max. 50mV
2 Battery power (B+) IG OFF DC Max. 0.5V
IG ON Battery Voltage
3 Power ground Idle DC Max. 50mV
4 Battery power (B+) IG OFF DC Max. 0.5V
IG ON Battery Voltage
5 Power ground Idle DC Max. 50mV
6 Battery power (B+) IG OFF DC Max. 0.5V
IG ON Battery Voltage
7 -
8 -
9 -
10 -
11 A/C Compressor Relay control output Relay OFF DC Battery voltage
Relay ON Min. -0.3V ~Max. 1.2V
12 Engine speed signal output Idle Frequency Around 26Hz at 850 RPM, idle
Around 16Hz at 3000 RPM
13 -
14 -
15 Fuel Tank Pressure Sensor (FTPS) signal input Idle Analog Min. 0.4V ~Max. 4.6V
16 -
17 -
18 -
19 -
20 Electrical load [Wiper] signal input Idle PWM Battery voltage
21 -
22 -
23 -
24 -
25 Fuel Level Sensor (FLS) signal input Idle Analog Min. 0.2V ~Max. 4.7V
26 -
27 -
28 -
29 -
30 -
31 -
32 -
33 -
34 Immobilizer Lamp control output Lamp ON DC Min. -0.3V ~ Max. 1.2V
Lamp OFF Battery voltage
35 -
36 Canister Close Valve (CCV) control output Inactive DC Min. -0.3V ~ Max. 1.2V
Active Battery voltage
37 Sensor ground Idle DC Max. 50mV
38 -
39 -
40 -
41 -
42 -
43 -
44 -
45 Sensor ground Idle DC Max. 50mV
46 -
47 Sensor ground Idle DC Max. 50mV
48 -
49 Sensor ground Idle DC Max. 50mV
50 Sensor ground Idle DC Max. 50mV
51 Battery power (B+) IG OFF DC Max. 0.5V
IG ON Battery Voltage
52 Start Motor relay control output IG OFF DC Battery voltage
IG ON Min. -0.3V ~Max. 1.2V
53 Cooling Fan Relay [High] control output IG OFF DC Battery voltage
IG ON Min. -0.3V ~Max. 1.2V
54 Cooling Fan Relay [Low] control output IG OFF PWM Battery voltage
IG ON Min. -0.3V ~Max. 1.2V
55 CCP CAN [High] RECESSIVE Pulse 2.0~3.0V
DOMINANT 2.75~4.5V
56 CCP CAN [Low] RECESSIVE Pulse 2.0~3.0V
DOMINANT 0~0.5V
57 -
58 -
59 -
60 -
61 -
62 Brake Test Switch signal input Switch ON Digital Battery voltage
Switch OFF Min. -0.3V ~Max. 0.5V
63 -
64 Blower Max.. signal input Idle Analog Min. 0.5V ~Max. 4V
65 -
66 -
67 A/C Pressure Transducer (APT) signal input Idle Analog Min. 0.4V ~Max. 4.6V
68 A/C Compressor switch signal output Switch ON Digital Battery voltage
Switch OFF Min. -0.3V ~Max. 0.5V
69 Immobilizer communication line When communicating after IG ON Pulse Hi: Min. 8.5V
Lo: Max. 3.5V
70 -
71 Accelerator Position Sensor (APS) 1 signal input Idle Analog Min. 0.6V ~Max. 4.3V
72 Accelerator Position Sensor (APS) 2 signal input Idle Analog Min. 0.3V ~Max. 2.1V
73 Battery power (B+) IG OFF DC Min. -.03V ~Max. 1.2V
IG ON Battery Voltage
74 Main Relay control output IG OFF DC Min. -.03V ~Max. 1.2V
IG ON Battery Voltage
75 Fuel Pump Relay control output Relay OFF DC Battery Voltage
Relay ON   Min. -.03V ~Max. 1.2V
76 -
77 C-CAN [High] RECESSIVE Pulse 2.0~3.0V
DOMINANT 2.75~4.5V
78 C-CAN [Low] RECESSIVE Pulse 2.0~3.0V
DOMINANT 0~0.5V
79 Clutch switch signal input Switch ON Digital Min. -0.3V ~ Max. 0.5V
Switch OFF Battery voltage
80 Vehicle speed signal input Idle Frequency Duty rate 40% ~ 60%
81 -
82 -
83 -
84 Brake Light Switch signal input Switch ON Digital Battery voltage
Switch OFF Min. -0.3V ~ Max. 0.5V
85 -
86 -
87 -
88 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON 4.75 ~ 5.25V
89 -
90 A/C request switch signal output Switch ON Digital Battery voltage
Switch OFF Min. -0.3V ~ Max. 0.5V
91 -
92 -
93 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON 4.75 ~ 5.25V
94 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON 4.75 ~ 5.25V
