Repair Procedures: Removal

[SULEV]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).
    NOTE: Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.

[Bank 1/Sensor 1]

Fig 1: Identifying Sensor Connector
G07264083Courtesy of HYUNDAI MOTOR CO.
Fig 2: Identifying Sensor
G07264084Courtesy of HYUNDAI MOTOR CO.

[Bank 1/Sensor 2]

Fig 3: Identifying Sensor 2 Connector
G07264085Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying Sensor 2
G07264086Courtesy of HYUNDAI MOTOR CO.

[ULEV]

[Bank 1/Sensor 1]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).
    NOTE: Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.

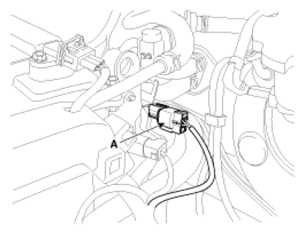

Fig 5: Identifying Connector
G07264087Courtesy of HYUNDAI MOTOR CO.

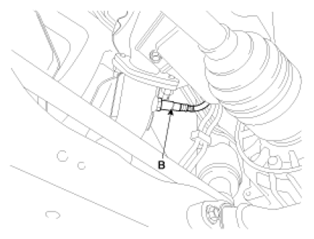

Fig 6: Identifying Sensor
G07264088Courtesy of HYUNDAI MOTOR CO.

[Bank 1/Sensor 2]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the console side cover.
  3. Disconnect the connector (A), and then remove the sensor (B).
    NOTE: Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.

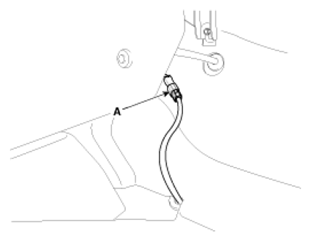

Fig 7: Identifying Sensor Connector
G07264089Courtesy of HYUNDAI MOTOR CO.

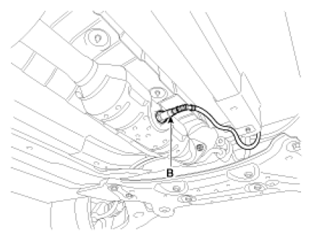

Fig 8: Identifying Sensor
G07264090Courtesy of HYUNDAI MOTOR CO.
