Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the knock sensor connector (A).

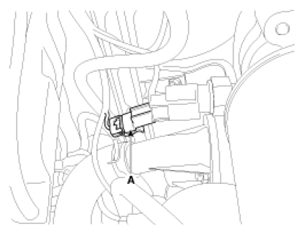

    Fig 1: Identifying Knock Sensor Connector
    G07264078Courtesy of HYUNDAI MOTOR CO.
  3. Remove the intake manifold (Refer to "INTAKE AND EXHAUST SYSTEM " in EM group).
  4. Remove the installation bolt (A), and then remove the sensor from the cylinder block.

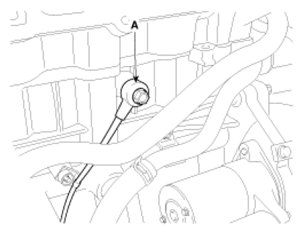

    Fig 2: Identifying Installation Bolt
    G07264079Courtesy of HYUNDAI MOTOR CO.
