Repair Procedures: Removal

Remove the following items;
1. Engine cover.
2. Air cleaner assembly and air duct. (Refer to "INTAKE AND EXHAUST SYSTEM " .)
3. Battery and battery tray. (Refer to "CHARGING SYSTEM " .)

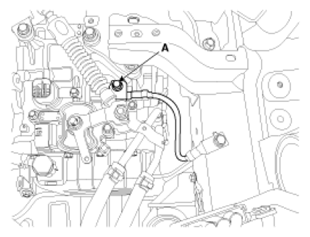

Remove the ground line after removing the bolt (A).

Fig 1: Identifying Ground Line Bolt
Courtesy of HYUNDAI MOTOR CO.

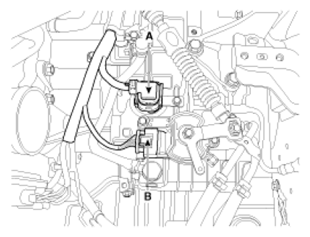

Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).

Fig 2: Identifying Solenoid Valve Connector
Courtesy of HYUNDAI MOTOR CO.

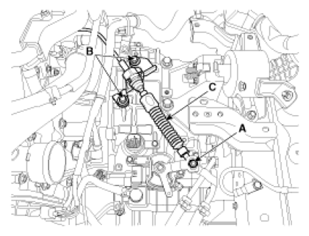

Remove the control cable (C) after removing the nut (A) and the bolt (B).
Tightening torque:

(A) 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

(B) 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

Fig 3: Identifying Control Cable Nut
Courtesy of HYUNDAI MOTOR CO.

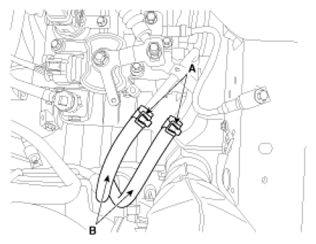

Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 4: Identifying Automatic Transaxle Fluid Cooler Hose Clamp
Courtesy of HYUNDAI MOTOR CO.

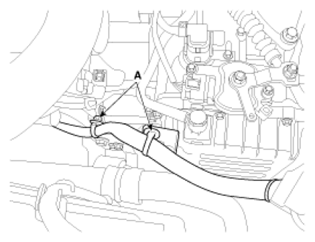

Remove the wiring clips (A).

Fig 5: Identifying Wiring Clips
Courtesy of HYUNDAI MOTOR CO.

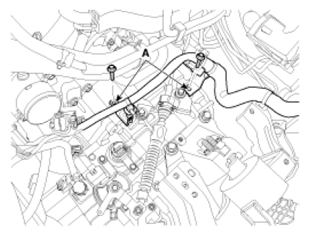

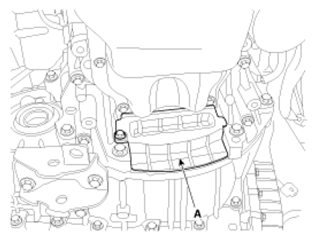

Remove the solenoid valve connector and inhibitor switch connector wiring mounting bracket (A).

Fig 6: Identifying Inhibitor Switch Connector Wiring Mounting Bracket
Courtesy of HYUNDAI MOTOR CO.

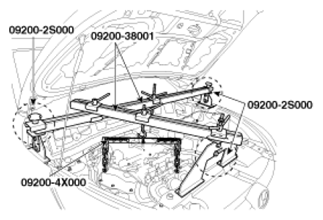

Using the engine support fixture (SST No.: 09200-38001), hold the engine and transaxle assembly safely.

Fig 7: Holding Engine And Transaxle Assembly Using Engine Support Fixture
Courtesy of HYUNDAI MOTOR CO.

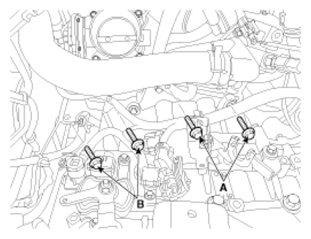

Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter motor mounting bolt (B-2ea).
Tightening torque:

(A, B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Fig 8: Identifying Automatic Transaxle Upper Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the automatic transaxle mounting support bracket bolt (A).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

Fig 9: Identifying Automatic Transaxle Mounting Support Bracket Bolt
Courtesy of HYUNDAI MOTOR CO.
Lift the vehicle with a jack.
Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 10: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.

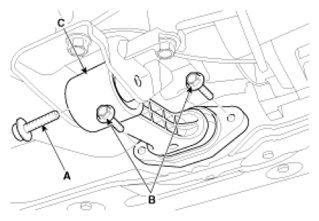

Remove the roll stopper (C) after removing the bolt (A) and (B).

Fig 11: Identifying Roll Stopper Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the following items.
1. Drive shaft assembly. (Refer to DRIVESHAFT ASSEMBLY )
Remove the dust cover (A).

Fig 12: Identifying Dust Cover
Courtesy of HYUNDAI MOTOR CO.

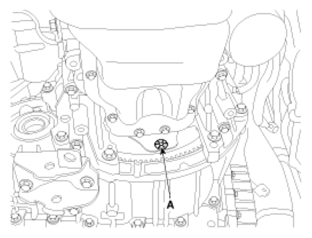

Remove the torque converter mounting bolt (A-4ea) with rotating the crankshaft.
Tightening torque:

45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

Fig 13: Identifying Torque Converter Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

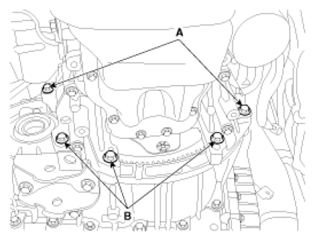

Remove the automatic transaxle with a jack after removing the mounting bolt (A-2ea, B-3ea).
Tightening torque:

(A) 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

(B) 39.2 ~ 46.1 N.m (4.0 ~ 4.7 kgf.m, 28.9 ~ 34.0 lb-ft)

Fig 14: Identifying Automatic Transaxle Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
