Shift Lever Assembly Replacement

Remove the center console assembly. (Refer to "INTERIOR (CONSOLE) ".)
Disconnect sports mode connector (A).

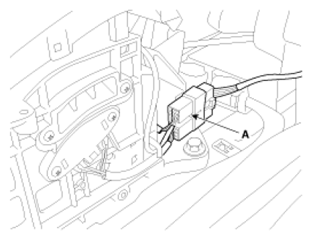

Fig 1: Identifying Sports Mode Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the control cable (A).

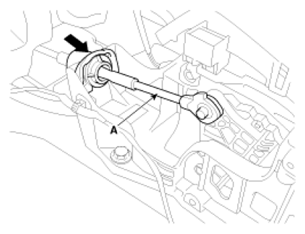

Fig 2: Identifying Control Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly (A) by removing the bolts (B-4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

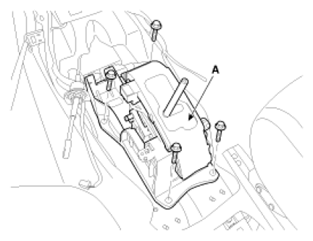

Fig 3: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE: Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
