Circuit Diagram: (A/T)

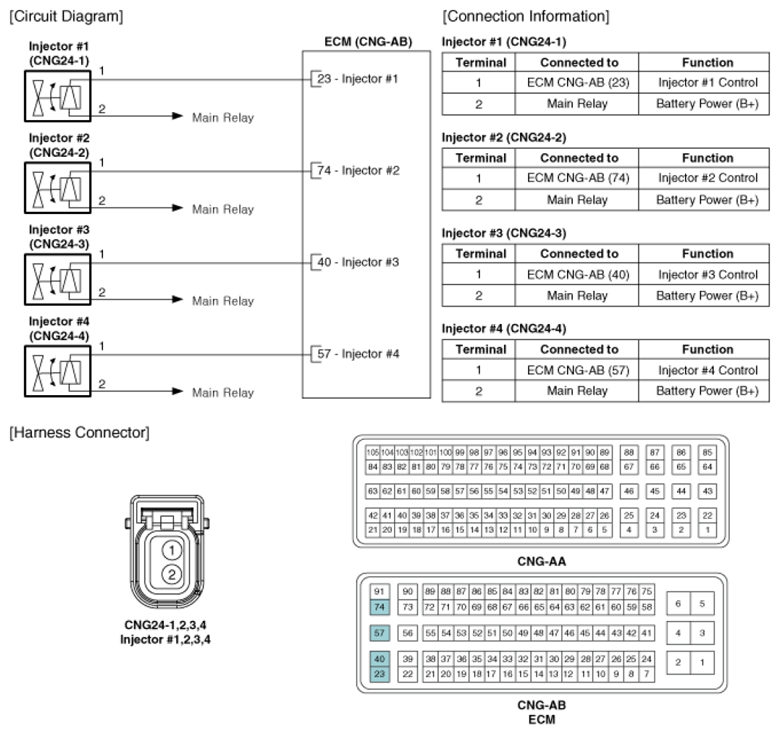

Fig 1: Injector (A/T) - Circuit Diagram

G07264103

Courtesy of HYUNDAI MOTOR CO.
