Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "IPM + PIC".
  3. After IG ON, select the "PIC ANTENNA STATUS CHECK".

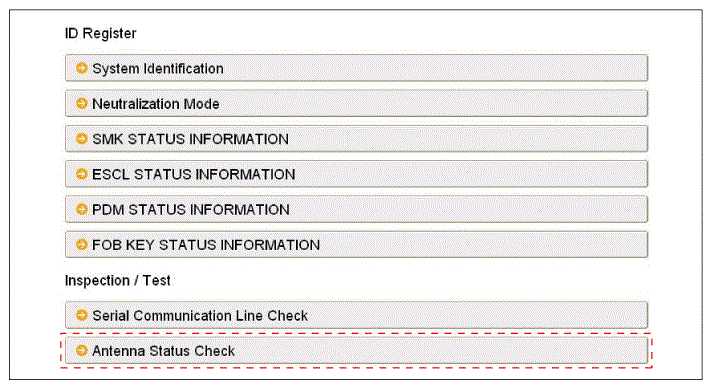

    Fig 1: Display - PIC Antenna Status Check Screen
    G08831249Courtesy of HYUNDAI MOTOR AMERICA
  4. Set the smart key near the related antenna and operate it with a scanner.

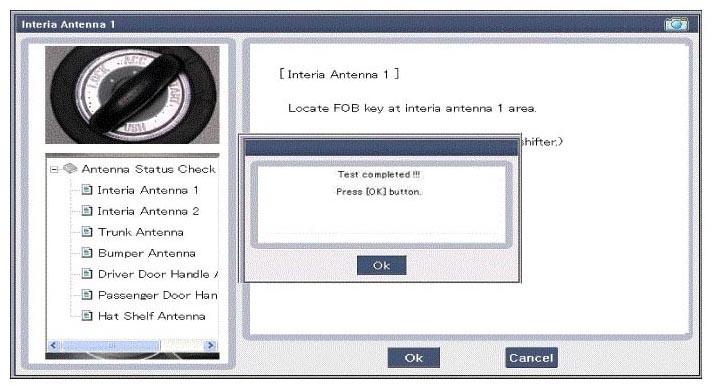

    Fig 2: Display - Interia Antenna Screen
    G08831250Courtesy of HYUNDAI MOTOR AMERICA
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR ANTENNA 1
    2. INTERIOR ANTENNA 2
    3. BUMPER/TRUNK ANTENNA
    4. Drifter ANTENNA
    5. AST_DR ANTENNA
    6. REAR PACKAGE TRAY ANTENNA
