Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

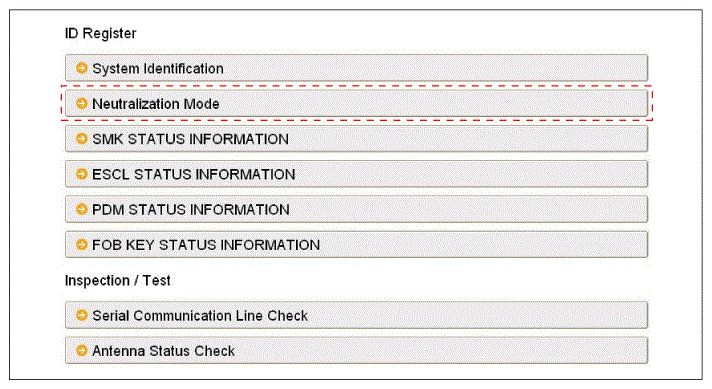

Fig 1: Display - Neutralization Mode ID Register
Courtesy of HYUNDAI MOTOR AMERICA

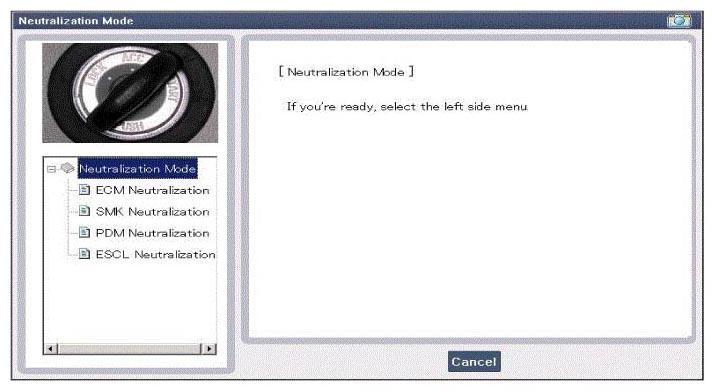

Fig 2: Display - Neutralization Mode
Courtesy of HYUNDAI MOTOR AMERICA

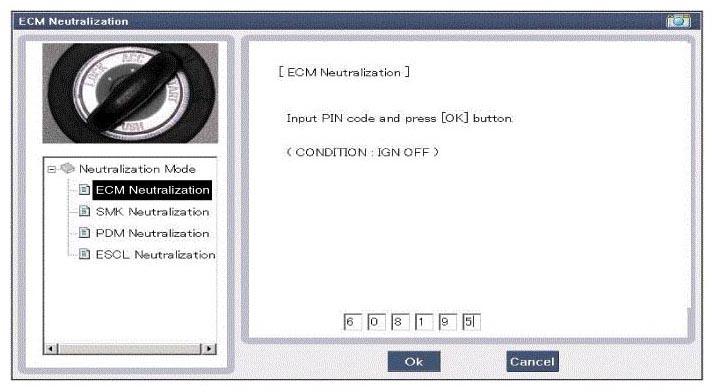

Fig 3: Display - ECM Mode
Courtesy of HYUNDAI MOTOR AMERICA

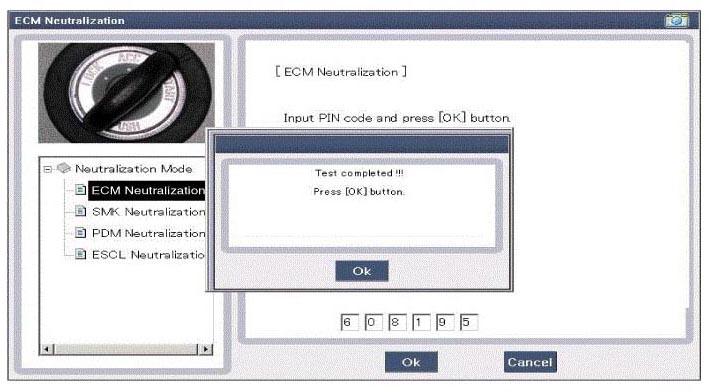

Fig 4: Display - ECM Mode (Test Completion)
Courtesy of HYUNDAI MOTOR AMERICA

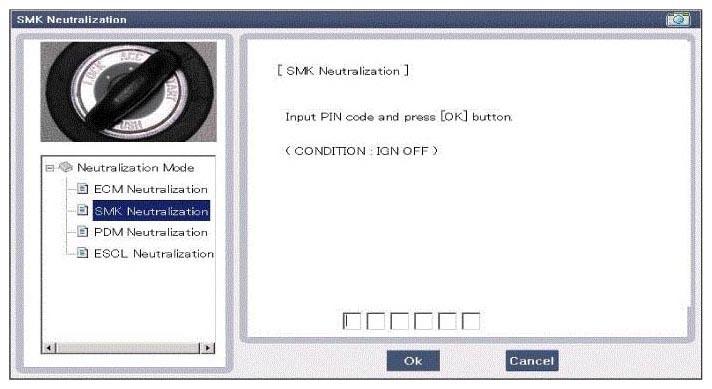

Fig 5: Display - SMK Mode
Courtesy of HYUNDAI MOTOR AMERICA

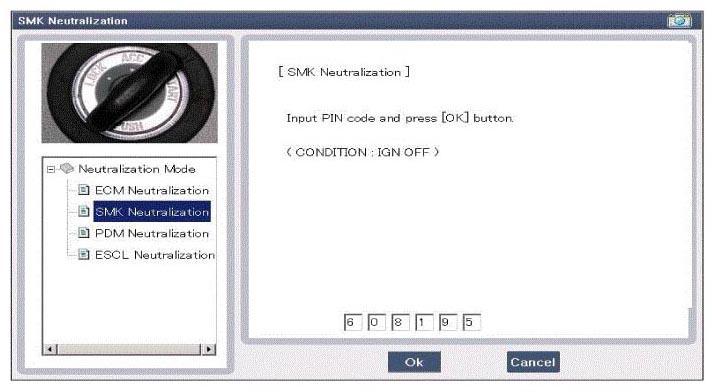

Fig 6: Display - SMK Mode (With PIN Code)
Courtesy of HYUNDAI MOTOR AMERICA

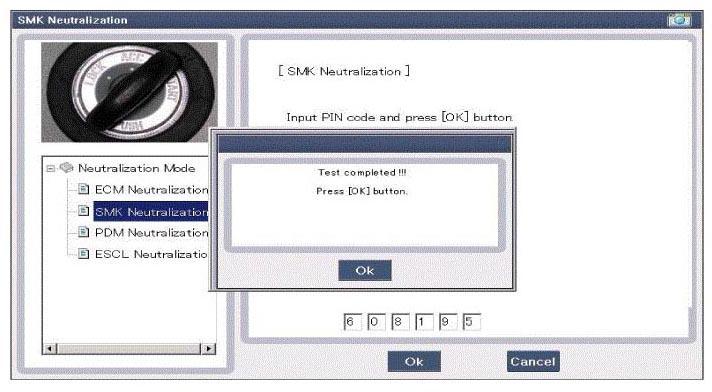

Fig 7: Display - SMK Mode (Test Completion)
Courtesy of HYUNDAI MOTOR AMERICA

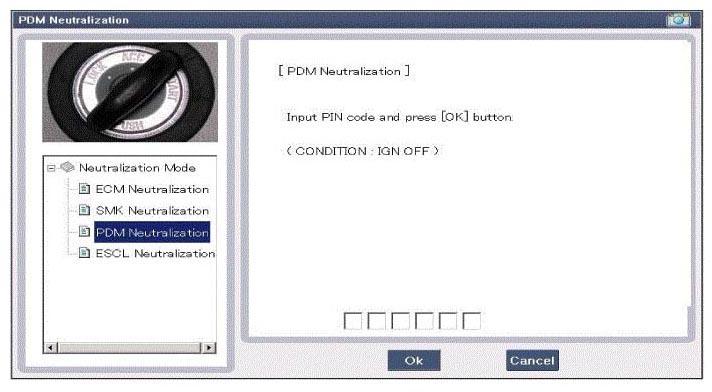

Fig 8: Display - PDM Mode
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - PDM Mode (With Code)
Courtesy of HYUNDAI MOTOR AMERICA

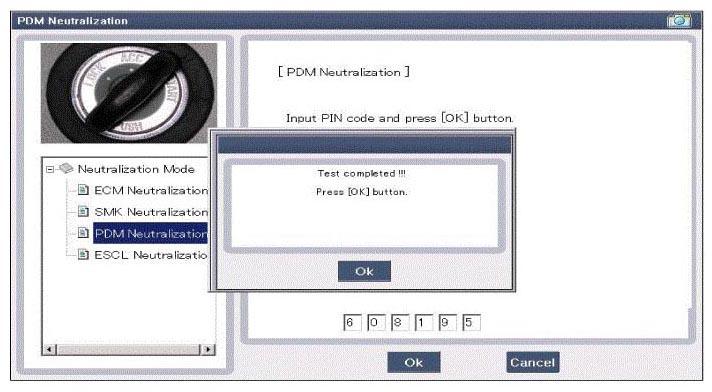

Fig 10: Display - PDM Mode (Test Completion)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 11: Display - ESCL Mode
Courtesy of HYUNDAI MOTOR AMERICA

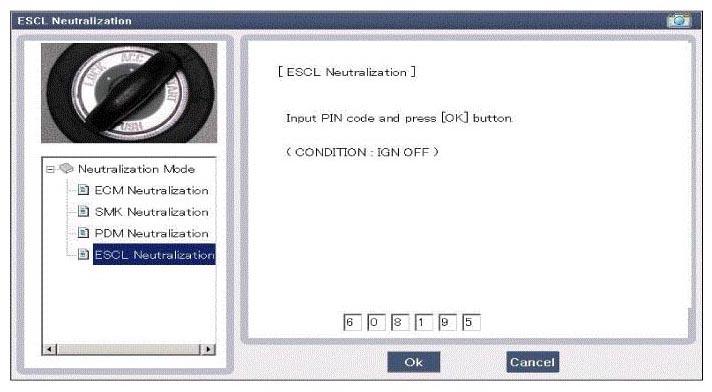

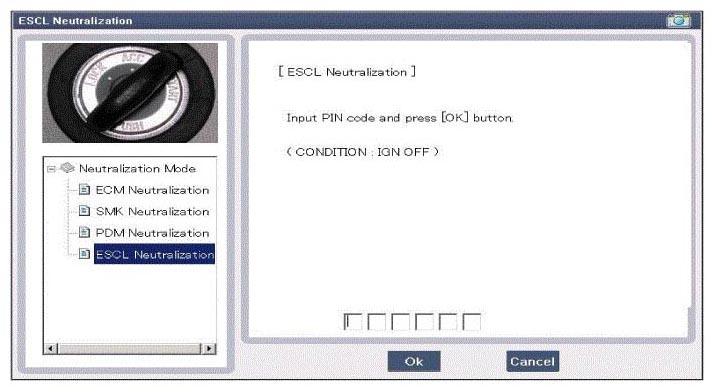

Fig 12: Display - ESCL Mode (With PIN Code)
Courtesy of HYUNDAI MOTOR AMERICA

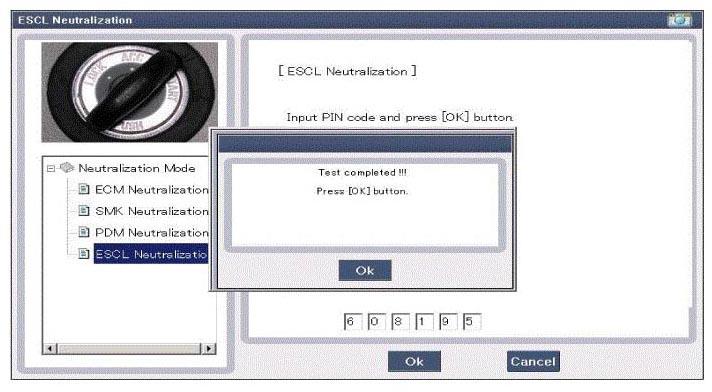

Fig 13: Display - ESCL Mode (Test Completion)
Courtesy of HYUNDAI MOTOR AMERICA
