PDM Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "PDM STATUS INFO".

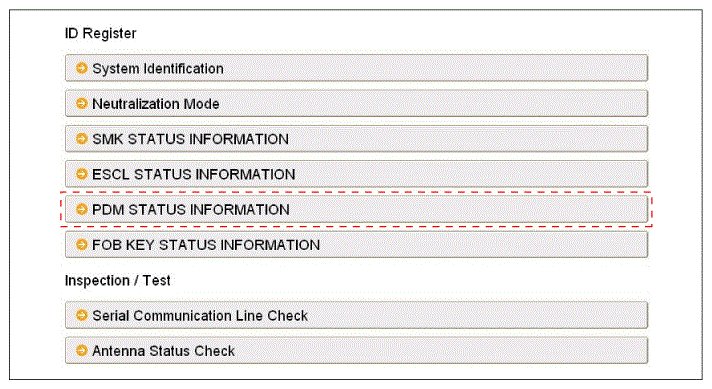

    Fig 1: Display - PDM Status Information ID Register
    G08831262Courtesy of HYUNDAI MOTOR AMERICA

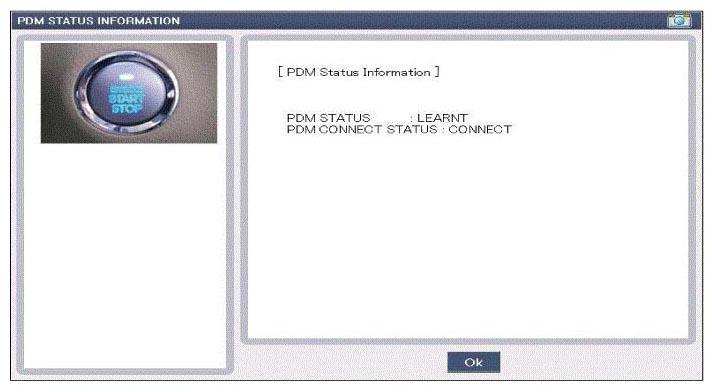

    Fig 2: Display - PDM Status Information
    G08831263Courtesy of HYUNDAI MOTOR AMERICA
