Switch Diagnosis

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
  2. Select the vehicle model and then "IPM" system.
  3. Select the "IPM + PIC".
  4. After IG ON, select the "Input/output monitoring".
  5. You can see the situation of each switch on scanner after connecting the "Input/output monitoring" process.

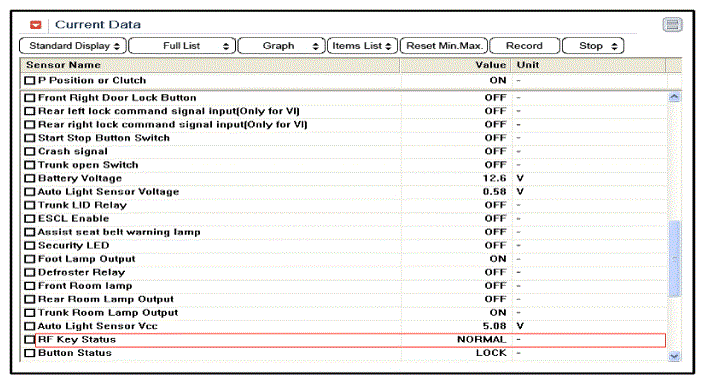

    Fig 1: Display - RF Key Status Switch Diagnosis
    G08831246Courtesy of HYUNDAI MOTOR AMERICA
