Block Diagram

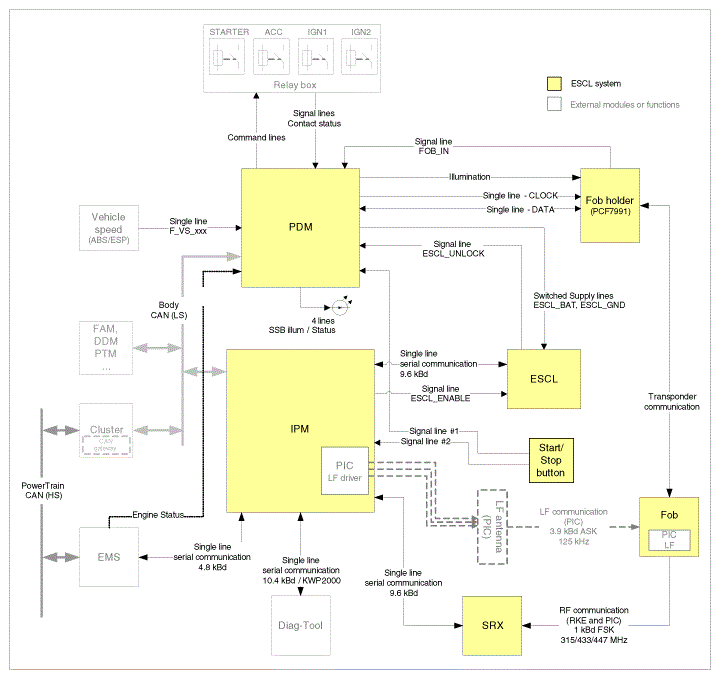

Fig 1: Smart Key System Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
