Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

Fig 2: Display - Smart Key Code Saving ID Register
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

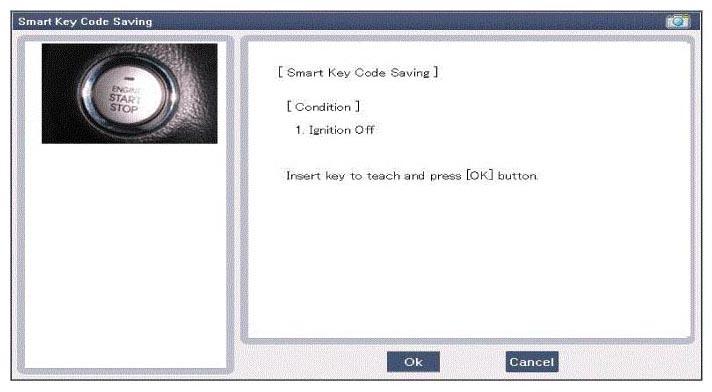

Fig 3: Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

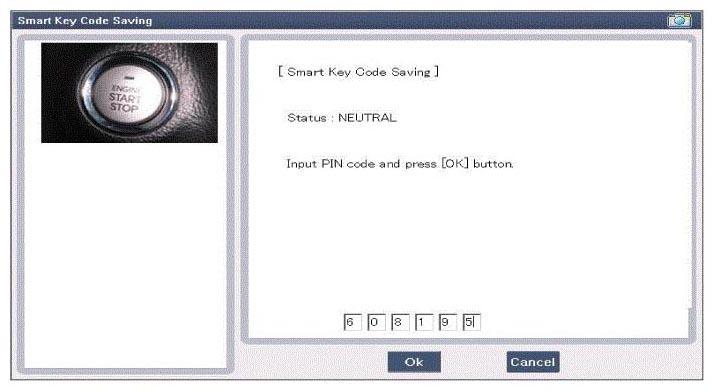

Fig 4: Display - Smart Key Code Saving (With PIN Code)
Courtesy of HYUNDAI MOTOR AMERICA

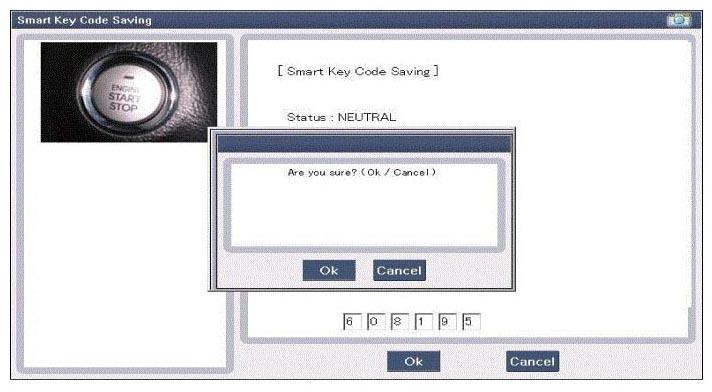

Fig 5: Display - Smart Key Code Saving (With Message)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 6: Display - Smart Key Code Saving (First Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA

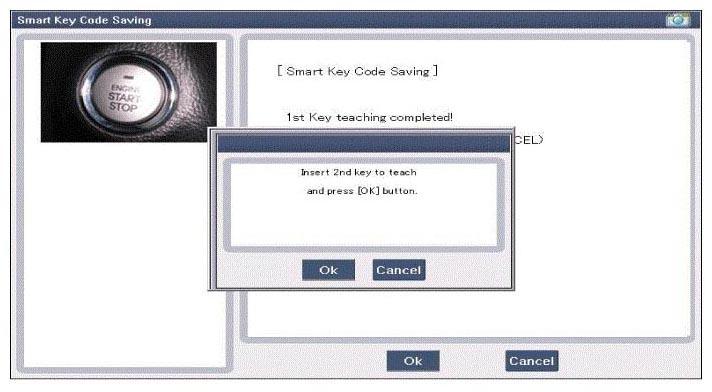

Fig 7: Display - Smart Key Code Saving (Second Key Teaching)
Courtesy of HYUNDAI MOTOR AMERICA
Input the "Pin code" for second key teaching.

Fig 8: Display - Smart Key Code Saving (Input PIN Code Second Key Teaching)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - Smart Key Code Saving (Inserting Second Key Teaching)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

Fig 10: Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
