Rear Console Assembly Replacement

CAUTION:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.

Remove the rear seat assembly.
(Refer to the "REAR SEAT ")
Disconnect the connector (A).

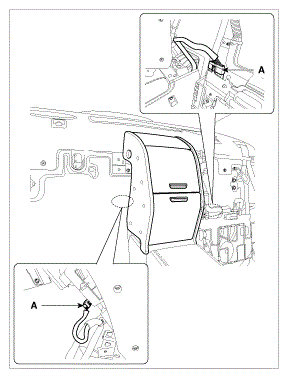

Fig 1: Identifying Rear Seat Assembly Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cap (B).
After loosening the mounting bolts, then remove the rear tower console complete assembly (A).

Fig 2: Identifying Rear Tower Console Complete Assembly, Cap And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the nozzle assembly (A).

Fig 3: Identifying Nozzle Assembly
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts, then remove the rear floor console complete assembly (A).

Fig 4: Identifying Rear Floor Console Complete Assembly And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
CAUTION:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
