Rear Monitor Replacement

Remove the floor console.
Using a screwdriver or remover, remove the rear air vent (A).

Fig 1: Identifying Rear Air Vent
Courtesy of HYUNDAI MOTOR AMERICA
Push the hook, disconnect the connector (A).

Fig 2: Disconnecting Rear Air Vent Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A) and cable clip (B).
Loosen the mounting screws, remove the rear monitor (C).

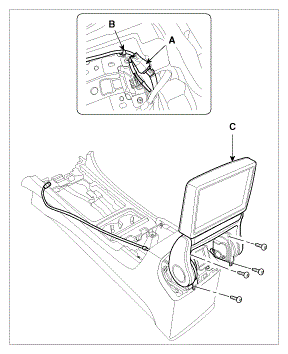

Fig 3: Identifying Rear Monitor, Connector And Cable Clip
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
